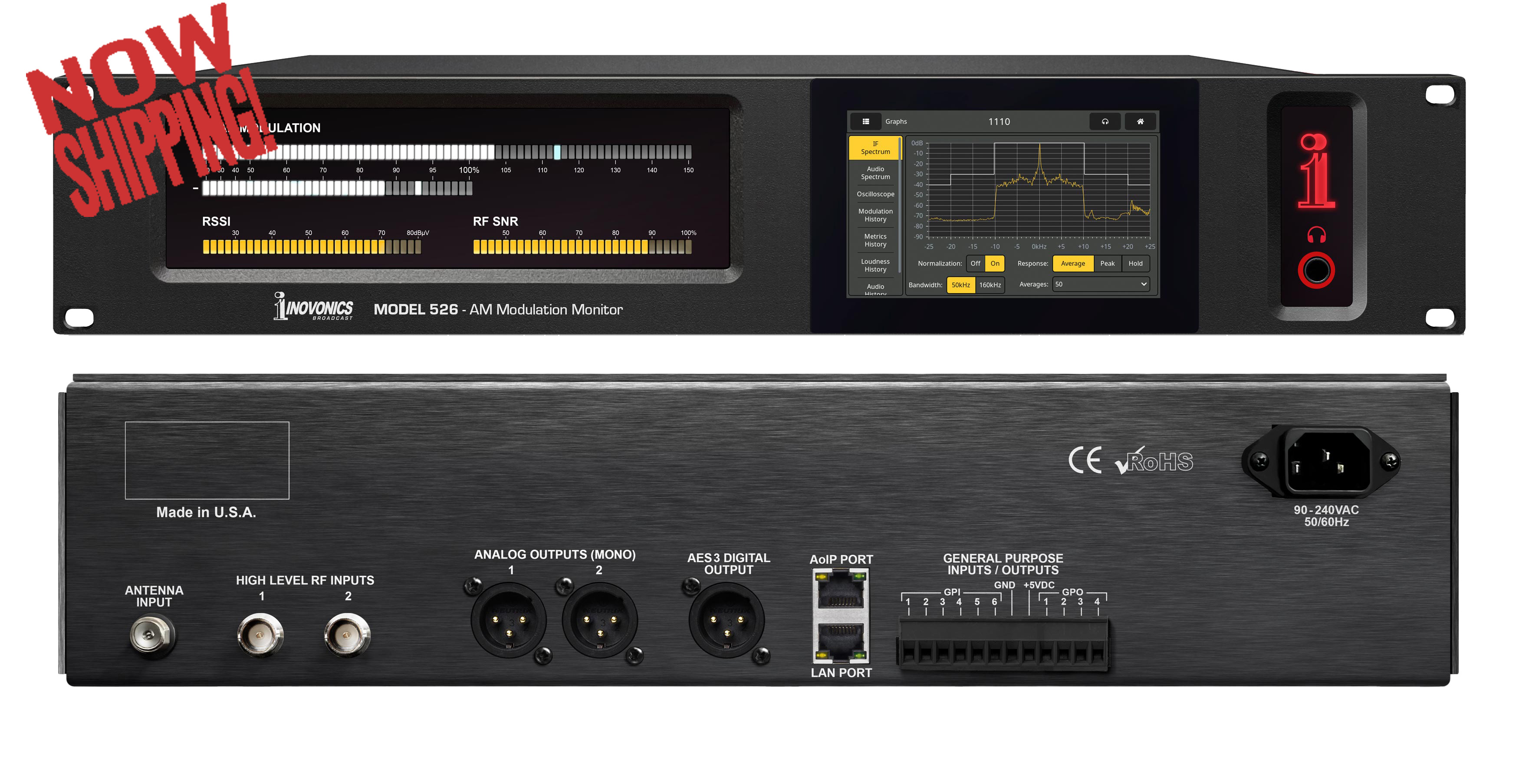

The 526 is Inovonics fourth-generation AM Modulation Monitor.

The all-digital 526 combines detailed DSP signal analysis with a menu-driven touchscreen display, plus Webserver-based total access for remote operation, including measurements, graphical data and direct Web-browser audio monitoring of the off-air program.

• Remotely tune AM band read metering and peak flashers.
• Tuning Range: 520kHz to 1720kHz in 10kHz steps; 522kHz to 1719kHz in 9kHz steps.
• Graphic 5-inch touch-screen and remote display of all level metering.
• Station Rotation for round-robin monitoring of up to 30 preset stations.
• Remote control and monitoring via Web.
• Enhanced alarm logging with notifications via Email/SMS & SNMP.
• Remote listening with multi-user stream and Dante/AES67 AoIP.
