Broadcast Tools, 2 X 1 Passive Audio Switcher

SS 2.1/TERM III

$271.00

* Check with us for the latest pricing

The Broadcast Tools SS 2.1/Term III passively switches or routes a variety of electrical signals to a destination. The SS 2.1/Term III selects any one of 2 stereo inputs to a single stereo output. The SS 2.1/Term III provides PASSIVE switching through gold contact relays. The passive switching means that the unit can route a signal in either direction. Due to the passive nature of the switching, any input level and impedance can be used. Inputs may be balanced or unbalanced, while output levels, impedance, distortion, noise and balancing will match that of the selected input. In addition to their normal use with audio signals, the unit can also be used to switch digital signals and telephone lines.

  • Operational control by front panel switches with LED indicators, contact closures, 5-volt TTL/CMOS logic levels and/or the multi-drop RS-232 serial port.
  • Removable screw terminals (Euro) are provided for audio and remote control connections.
  • Audio switching via sealed relays utilizing 2-form-C bifurcated - crossbar silver alloy with gold overlay contacts.
  • Logic functions via microprocessor and non-volatile memory.
  • The power-up feature allows the user to select which one source is active at power up, including the last source selected.
  • Three logic-switching modes, interlock, sustained or toggle.
  • Configuration via dip switches.
  • The "ENABLE" switch provides a safety lock to the front panel source selection switches.
  • The audio "MUTE" switch allows the user to turn off the audio output when activated.
  • Source number one is configured to route audio to the output in the case of loss of power to the unit.
  • Non-selected sources are terminated with 10K ohms load resistors.
  • Relays provided for remote status.
  • The SS 2.1/Term III may be set on a desktop, mounted on a wall or as part of the new RA-1, "Rack-Able" mounting shelf.
  • Optional RA-1 rack shelf for mounting up to three units in 1-RU.

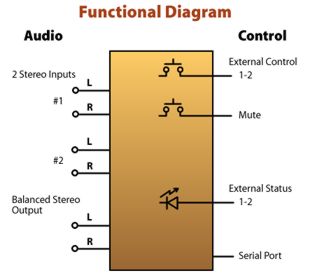

Download Functional Diagram
Download Product User Manual
View Manufacturers Website
