WATTMETER DIGITAL & ANALOG MODULATION

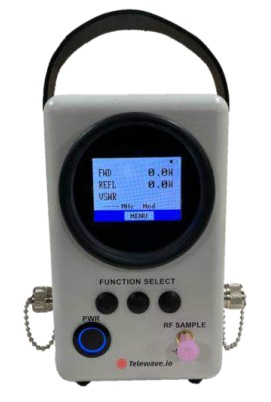

Telewave 44D-LXE Digital/Analog Broadband RF Wattmeter

The Telewave.io Model 44D-LXE Broadband RF Wattmeter is a compact, versatile test

instrument for the direct measurement of forward and reflected RF power.

Like Telewave.io’s venerable 44A Wattmeter, the 44D-LXE wattmeter is housed in the

same ruggedized housing and form factor. The Digital wattmeter supports legacy Land

Mobile (LMR) Modulation (CW, FM, and Non-TDMA FSK), with the addition of newer TDMA

& Quadrature modulation schemes (P25-P2, DMR, TETRA) (details in the user manual.)

This meter does not require field calibration, frequency elements (slugs), or the use of

correction tables at any temperature or frequency within specification.

The features of the 44D-LXE include:

Extended Battery Life & Rapid Charging – Provides up to 6 hours of operation with an external battery. 12V DC charger and cable included, charges 4x faster.
An optional high-capacity 12V battery extends operation up to 10 hours of operation.
USB-C Data Port – Data transfer only
Digital Frequency Counter – Built-in for precise frequency measurement.
