The ADCS III provides professional quality 24-bit A/D conversion, along with AES path insertion and interruption functions. The ADCS III may be configured as a standalone A/D converter or to switch AES or stereo analog inputs into another AES stream. The ADCS III is a perfect companion for analog EAS encoders/decoders to be inserted into an AES program stream. The ADCS III is equipped with relay bypass in case power is removed from the unit. The A/D converter may be configured for sample rates of 44.1 or 48kHz (32kHz may be special ordered) or an external word clock from 32 to 96kHz.

• Balanced stereo analog input, AES input, AES output and remote control via plug-in euroblock connectors.

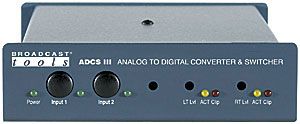

• The front panel is equipped with left and right analog input trimmers, overload, audio presence and power LED indicators.
• Input transfer switches are provided along with LED indicators.
• Most front panel functions and status are available on the rear panel connector.
• Powered by a surge protected internal bi-polar 15 vdc power supply affording superior headroom and high definition audio.
• May be set on a desktop, mounted on a wall or up to three units may be mounted on the optional RA-1, Rack-able mounting shelf.
