AMS-10KA

The AMS-10KA is an accessory equipped with a single-turn knob for a user to adjust the audio level. It is designed for the adjustable attenuation of an unbalanced audio signal. The AMS-10KA contains a long-life 10 kΩ audio taper potentiometer for adjusting the audio level. A high quality terminal block is provided for external connections. The AMS-10KA mounts in AMS mounting frames and in standard D-style cutouts. The front plate and bracket are constructed of black satin powder coated steel. A molded black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Specifications

Ambient Operating Environment: 0° C to 70° C
WEEE Weight: 0.0644 lbs
Mounting: AMS mounts; D-Style cutouts
Depth (behind the panel): 1.00 in
Package Type: Bag
Shipping Weight: 0.081 lbs
Tariff code: 8543.70.9860

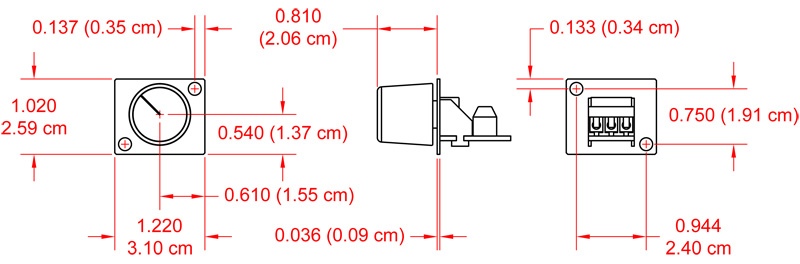

Dimensions
