AMS-LEDG

The AMS-LEDG is an accessory with a green LED indicator that mounts in AMS mounting frames and in standard D-style cutouts. A high quality terminal block is provided for the connections. The LED is powered from an external 24 Vdc. The input is protected against reverse voltage. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.

Specifications

Mounting: AMS mounts; D-Style cutouts
Depth (behind the panel): 1.35 in
Ambient Operating Environment: -20° C to 70° C
Input Voltage Range: 12 Vdc to 26 Vdc
24 Vdc power supply current: 8 mA, Ground-referenced or floating
Package Type: Bag
WEEE Weight: 0.045 lbs
Shipping Weight: 0.06 lbs
Tariff code: 8543.70.9860

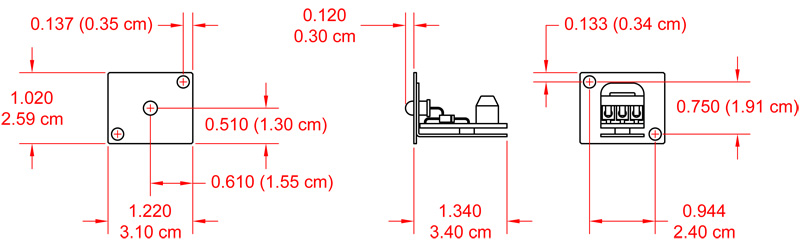

Dimensions
