LILLIPUT BM150-4KS 15.6" 6U Carry-on/Rackable V Mount 3840x2160 4x4K HDMI 3G-SDI in&Out Broadcast LED Director Monitor with HDR, 3D-LUT, Color Space & Peaking Functions (with V Mount)

Built into a hard case, the Lilliput BM150-4KS Carry-On 4K Broadcast Monitor is a 15.6" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. The full capacity of the 3840 x 2160 UHD resolution 8-bit panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, via one HDMI 2.0 input with up to DCI 4K sources, or via SDI input with up to 1080p60 sources.

Features

• Carry-on 4K monitor
• 4K (3840*2160) Ultra-HD native resolution,

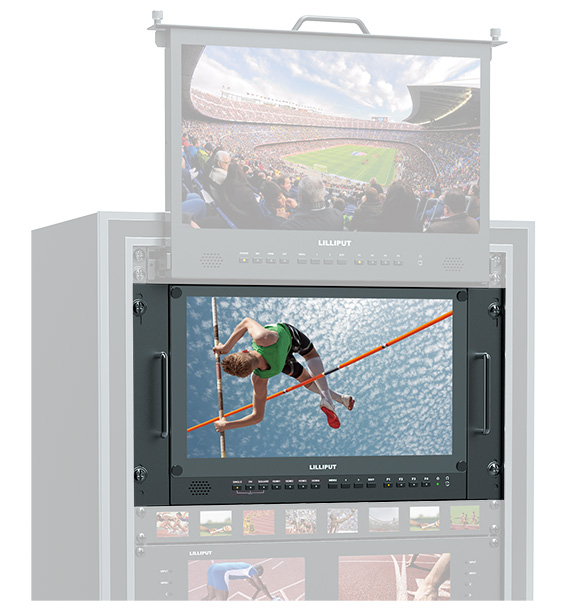

• 15.6" perfect size for both suitcase & rackmount,

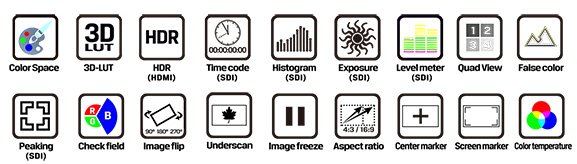

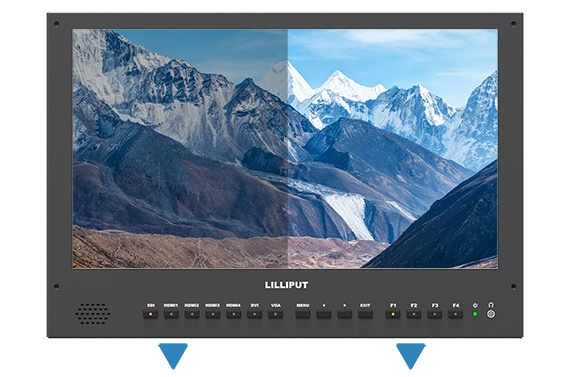

• HDR, 3D-LUT & Color space,
• Peaking, False color & Time code,
• High contrast: 1000:1,
• 176° Ultra high viewing angle,

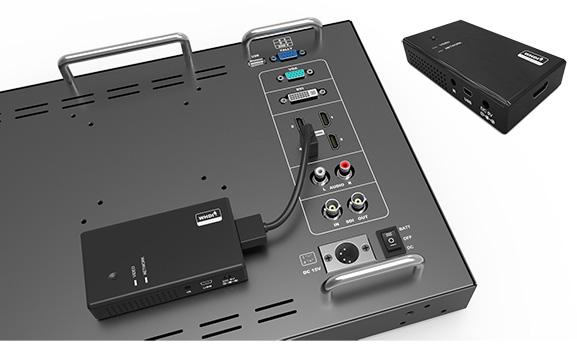

• Rich interfaces: 3G-SDI, HDMI, DVI, VGA, AV input,
• Wide voltage: DC12-24V
• Size with V Mount

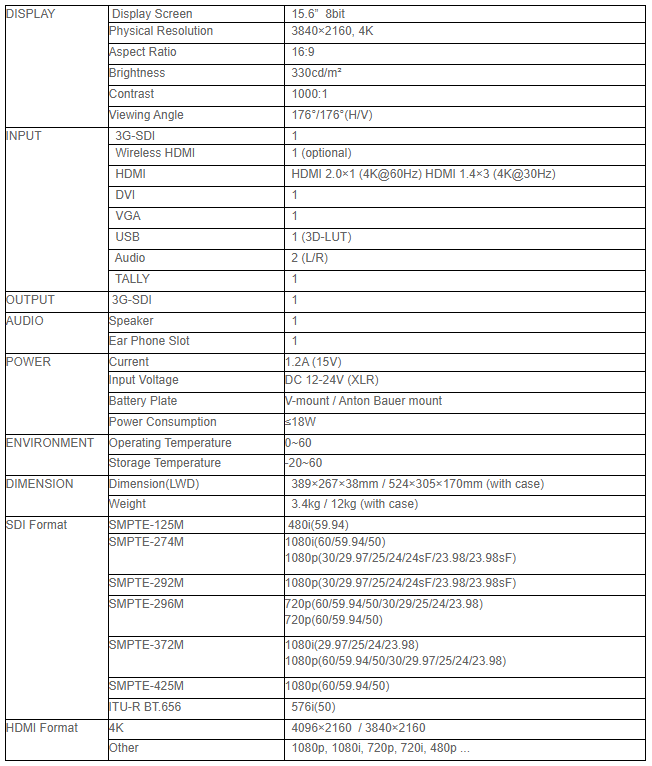

Specifications

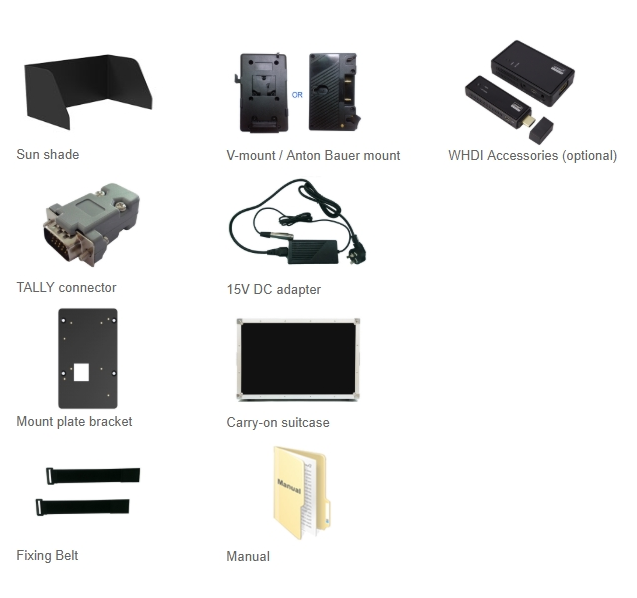

Accessories
