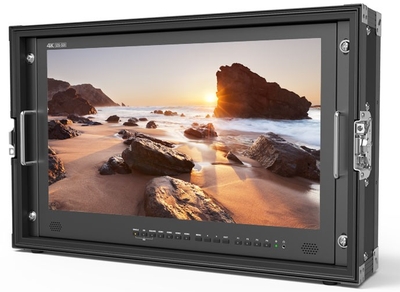

Lilliput BM230-12G, 23.8Inch 4K Broadcast Director Monitor

BM230-12G

P.O.A


Lilliput BM230-12G

23.8" 12G-SDI 4K Broadcast Director Monitor with 12G-SDI, 4K HDMI inputs

Key Features:
  • 4K (3840*2160) Ultra-HD native resolution ,
  • 12G-SDI Single - Link , Dual - Link , Quad - Link
  • 23.8" perfect size for both suitcase & rackmount,
  • High contrast: 1000:1,
  • 300cd/m² brightness,
  • 178° Ultra high viewing angle,
  • Rich interfaces: 12G-SDI, 4K HDMI input,
  • Metal housing,
  • Wide voltage: DC12-24


Specifications:

DISPLAY
  Display Screen  23.8”  10bit
  Physical Resolution  3840×2160, 4K
  Aspect Ratio  16:9
  Brightness  300cd/m²
  Contrast  1000:1
  Viewing Angle  178°/178°(H/V)
INPUT
  12G-SDI  2
  3G-SDI  2
  HDMI  HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)
  HDMI wireless  1 (optional)
  TALLY  1
OUTPUT
  12G-SDI  2
  3G-SDI  2
AUDIO
  Speaker  1
  Ear Phone Slot  1
POWER
  Current  4.1A (15V)
  Input Voltage  DC 12-24V (XLR)
  Battery Plate  V-mount / Anton Bauer mount
  Power Consumption  ≤61.5W
ENVIRONMENT
  Operating Temperature  0℃~60℃
  Storage Temperature  -20℃~60℃
DIMENSION
  Dimension(LWD)

  579×376.5×45mm / 666×417×173mm (with case)

  Weight  8.6kg / 17kg (with case)
