Lilliput BM230-4KS - 23.8 Inch Broadcast Monitor

BM230-4KS

P.O.A

* Ex GST. Check with us for the latest pricing

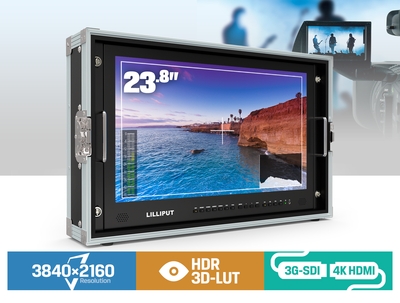

Lilliput BM230-4KS - 23.8" 4K HDMI Carry-On Broadcast Monitor With SDI, HDR And 3D LUTS

OVERVIEW
  • 4K (3840*2160) Ultra-HD native resolution,
  • 23.8" perfect size for both suitcase
  • HDR, 3D-LUT & Color space,
  • Peaking, False color & Time code,
  • High contrast: 1000:1,
  • 178° Ultra high viewing angle,
  • Rich interfaces: 3G-SDI, HDMI 2.0, DVI, VGA, AV input,
  • Wide voltage: DC12-24V.

DISPLAY
 Display Screen  23.8”  8bit
Physical Resolution  3840×2160, 4K
Aspect Ratio  16:9
Brightness  300cd/m²
Contrast  1000:1
Viewing Angle  178°/178°(H/V)
INPUT
  3G-SDI  1
  Wireless HDMI  1 (optional)
  HDMI  HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz)
  DVI  1
  VGA  1
  USB  1 (3D-LUT)
  Audio  2 (L/R)
  TALLY  1
OUTPUT 3G-SDI  1
AUDIO
Speaker  2
Ear Phone Slot  1
POWERCurrent2.7A (15V)
Input VoltageDC 12-24V (XLR)
Battery PlateV-mount / Anton Bauer mount
Power Consumption≤41W
ENVIRONMENTOperating Temperature0~60
Storage Temperature-20~60
DIMENSIONDimension(LWD)  579×376.5×45mm / 666×417×173mm (with case)
Weight  8.6kg / 17.1kg (with case)
SDI FormatSMPTE-125M 480i(59.94)
SMPTE-274M1080i(60/59.94/50)
1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M720p(60/59.94/50/30/29/25/24/23.98)
720p(60/59.94/50)
SMPTE-372M1080i(29.97/25/24/23.98)
1080p(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M1080p(60/59.94/50)
ITU-R BT.656  576i(50)
HDMI Format
4K  4096×2160  / 3840×2160
Other  1080p, 1080i, 720p, 720i, 480p ...



Accurate Color Calibration
A specific calibration to reproduce the colors of the image color space.
Color calibration supports the PRO/LTE version of LightSpace CMS by Light Illusion.

Adjustable Color Space
Native, Rec.709 and 3 User
Defined are Optional for Color Space


D LUT
Wider color gamut range to make precise color reproduction of Rec. 709 color space with built-in 3D LUT, featuring 3 user logs.


Multiple Views Display
It supports quad views splitted from different input signals simultaneously, such as SDI, HDMI, DVI and VGA.



PEAKING FILTER (SDI)


ASPECT / CENTER / SAFETY MARKER

AUDIO LEVEL METER / HISTOGRAM



Wireless HDMI (optional)
With Wireless HDMI (WHDI) technology, which has a 50-meter transmission distance, supports up to 1080p 60Hz. One transmitter can work with one or more receivers.
