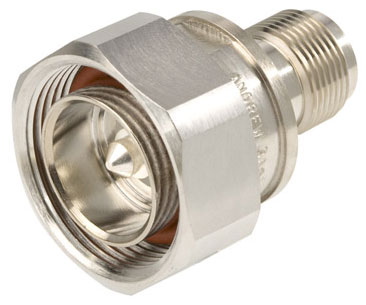

Andrew, Type N Female to 7-16 DIN Male RF Adapter

CA-TNFDM

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!


Type N Female to 7-16 DIN Male Adapter.

Body Style Straight
Mounting Angle Straight

Connector Impedance: 50 ohm
Operating Frequency Band: 0 - 6000 MHz
3rd Order IMD, typical: -123 dBm @ 910 MHz
3rd Order IMD Test Method: Two +43 dBm carriers
RF Operating Voltage, maximum (vrms): 707.00 V
dc Test Voltage: 2500 V
Outer Contact Resistance, maximum: 0.40 mOhm
Inner Contact Resistance, maximum: 1.50 mOhm
Insulation Resistance, minimum: 5000 MOhm
Average Power: 600.0 W @ 900 MHz
Peak Power, maximum: 10.00 kW
