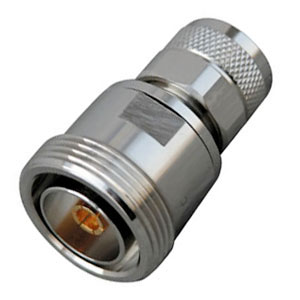

Andrew, Type N Male to 7-16 DIN Female RF Adapter

CA-TNMDF

P.O.A

* Ex GST. Check with us for the latest pricing

Type N Male to 7-16 DIN Female Adapter.

Body Style: Straight
Mounting Angle: Straight

Connector Impedance: 50 ohm
Operating Frequency Band: 0 - 6000 MHz
3rd Order IMD, typical: -120 dBm @ 1800 MHz
RF Operating Voltage, maximum (vrms): 707.00 V
dc Test Voltage: 2500 V
Outer Contact Resistance, maximum: 0.40 mOhm
Inner Contact Resistance, maximum: 1.50 mOhm
Insulation Resistance, minimum: 5000 MOhm
Average Power: 600.0 W @ 900 MHz
Peak Power, maximum: 10.00 kW
