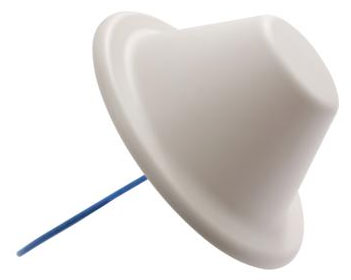

Andrew, Dual-band Omni-directional In-building Antenna

CELLMAX-O-CPUSEI

P.O.A

* Ex GST. Check with us for the latest pricing

Cell-Max Omni In-building Antenna, 698-960 MHz and 1710-2700 MHz.

Andrew Solutions Cell-Max series of in-building antennas add spot coverage in any difficult indoor coverage areas. They are a uniquely effective and unobtrusive solution to enhancing your in-building wireless coverage.

Cell-Max Antennas feature a multiband design that allows a wide range of frequencies to be covered by one small antenna. Created primarily for office environments, Cell-Max Antennas are also ideally suited for parking garages, airports, shopping malls, and other difficult coverage areas. Designed for simple installation and minimal visual impact, Cell-Max Antennas support both existing and future wireless applications.

An integral low-loss coaxial cable pigtail eliminates connectors, reducing overall system cost as well as the losses associated with connector junctions. By combining Cell-Max Antennas with other in-building products such as the Britecell Fiber Optic Distributed Antenna System, indoor repeaters, RADIAX Radiating Coaxial Cables, coaxial cable taps, power dividers, and couplers, Andrew can provide a complete solution to your internal wireless coverage needs.

  • Compact and visually unobtrusive
  • Multiband to cover future 3G applications up to 2500 MHz
  • VSWR of 1.5 dB typical
  • Includes hardware for wall mounting;installs in minutes with standard tools
  • Low-profile multiband radiating element provides broad frequency coverage in a small mechanical package.
  • Omnidirectional - small, unobtrusive, easy to install; mounts to typical office ceiling tile.

Download Product Datasheet
