Aphex, Mic Preamp & Input Processor



* Ex GST. Check with us for the latest pricing

 Data Sheet Related Products

With more and more studios foregoing consoles in favour of recording and mixing "in the box", a clean and versatile front end input stage is indispensable. There are dozens and dozens of channel strips and similar devices to choose from, but none that come close to the Channel in terms of sound, features or performance. Our legendary Model 230 has been re-imagined as the Channel, adding a host of new features to address a greater number of workflows while retaining the sound, functionality and versatility that made the 230 one of the most in-demand processors ever for professional audio, live sound, broadcast and post-production.

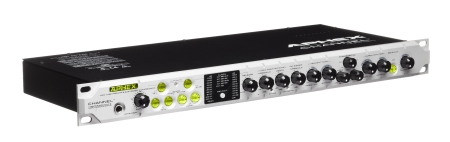

Channel incorporates seven powerful devices within a compact, single rack space design, including five of Aphex's exclusive patented technologies. The result is the highest possible audio quality, processing power and flexibility. The elegant front panel not only looks great but is laid out in an intuitive, easy-to-use workflow with easy to understand labelling. Building on the foundation of the Model 230, the Channel features an instrument input, dedicated output and gain reduction metering, front panel sample rate and clock source selection; and a reference quality internal clock.

 Master preamp & input processor


Broadcast - Channel is a tube microphone preamp and signal processor that is an indispensable broadcast station tool. You'll find them in the production room and installed as permanent on-air processing for pumping up voices.

Recording Studios - Channel is a powerful and easy-to-use channel strip for commercial and project studios, featuring our reflected-plate amplifier tube microphone preamp design plus compression, gating, de-esser, parametric EQ, Aural Exciter and Big Bottom bass enhancement.

Live Sound - When space is at a premium in a touring rig, and night after night reliability is essential, the rugged Channel provides all the top quality processing needed for any instrument without taking up precious rack space.


Patented Reflected Plate Amplifier (RPA) Tube Preamp

  • Ultra-wide bandwidth, maximum gain and headroom
  • Lower operating temperature than conventional tube designs for longer tube life
  • Individually tuned at the Aphex factory for unparalleled consistency: any two units are a matched pair

EasyRider Class A Compressor

  • Aphex's patented Wave Dependent Compressor automatically adjusts attack and release times according to program complexity
  • No-Knee compression curve circuitry automatically adjusts compression ratio based on program levels
  • Includes Aphex's 1001 Class A Voltage Controlled Attenuator, used in the Compellor and Dominator

Master preamp & input processor

Logic Assisted Gate: Patented gate technology designed to avoid false triggers, clicks and chattering

De-Esser: Split band universal de-esser designed to maintain presence while dramatically reducing sibilance on any voice

Aural Exciter: Patented technology for increased presence and clarity with improved detail and intelligibility

Big Bottom: Patented technology for deeper and more resonant bass with little or no increase in peak output

Parametric EQ: For the ability to precisely fine-tune the all-important midrange between the Big Bottom and Aural Exciter
