JK-Audio, Concierge

CON2X6

$0.00

* Ex GST. Check with us for the latest pricing

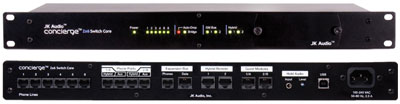

JK Audio introduces a modular family of talk show system components. The heart of the system is the new Concierge switch core, allowing connection of two hybrids across six phone lines.

The switch matrix routes six incoming analogue phone lines to JK Audio innkeeper 1rx or innkeeper 2 Digital Hybrids. A firmware upgrade is all that is required to make most older model INN1x/INN1rx and INN2 hybrids compatible with this new system.

Innkeeper digital hybrids are globally compliant and compatible with most PBX and VOIP analog line ports.

Concierge adds music on hold input, auxiliary phone integration, and intuitive call control. Two Concierge switch cores can be bridged together, providing six additional phones lines for a two hybrid, 12 line system.

Up to eight Guest Module control surfaces can be added to provide remote control of the switch matrix over CAT5 cable. Guest Modules are available in GM1x6, GM2x6, and GM1x12 desktop and rack mount versions.

The smallest system consists of one Concierge switch core, one innkeeper 1rx, and one Guest Module GM1x6 control surface.

  • 6 Phone line jacks
  • 2 Hybrid Connections
  • 2 Integrated Aux Phone Connections
  • Hold Audio Input
  • Expandable to 2 x 12 Lines
  • LED Line Status Indicators
  • Front Panel DIP switches
