RDL Microphone Input Assembly - XLR, Terminal block

D-J1

$165.27

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

D-J1

Microphone Input Assembly

Wall Mounted Microphone Input Panel
XLR Input Connector with Gold Contacts
Barrier Block Wiring Connections
Ground-Lift Terminals on Barrier Block

Description

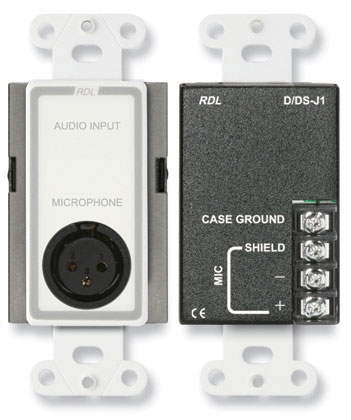

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and – (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Specifications

Input Connector: XLR female gold contacts
Output Connector: Barrier block
Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), – (XLR pin 3)
Power Requirement: Passive

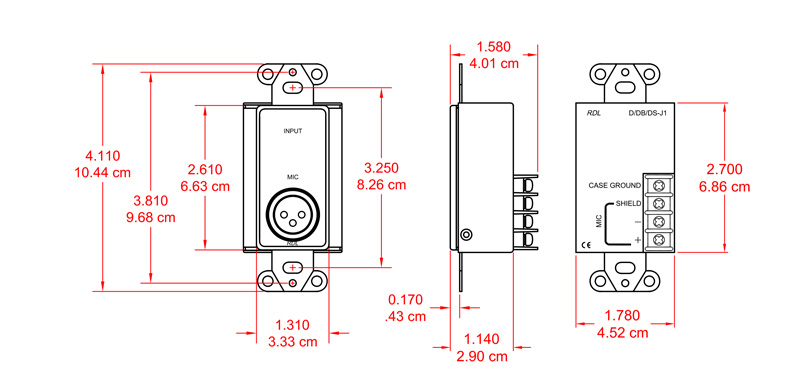

Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
Package Type: Cardboard Box
Tariff code: 8536.69.4030
WEEE weight: 0.28 lbs.
Shipping Weight: 0.43 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
