RDL Consumer Input Jacks - Stereo - Black

DB-CIJ3D

$295.36

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

DB-CIJ3D

Consumer Input Jacks – Stereo

Stereo Inputs to Stereo Outputs
Stereo Inputs on RCA Jacks and Stereo Mini-Jack
Unbalanced to Balanced Conversion Without Gain
Transformer Isolation for Unbalanced Line Inputs
Hum Cancellation on Unbalanced Line Inputs
Line-Level Output to Feed 10 kΩ Equipment Inputs
Output Connections on Detachable Terminal Block
Available in RDL White/Gray (D-CIJ3D)
Available in Stainless Steel (DS-CIJ3D)

Description

The DB-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

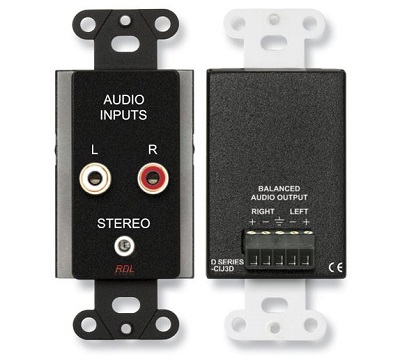

The DB-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.

Specifications

Input connectors (3): Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Frequency response (line level): 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
Crosstalk: <-80 dB (1 kHz); <-60 dB (10 Hz to 20 kHz)
THD: <0.2% (1 kHz)
Output connector: Detachable terminal block
Ambient Operating Environment: 0° C to 55° C

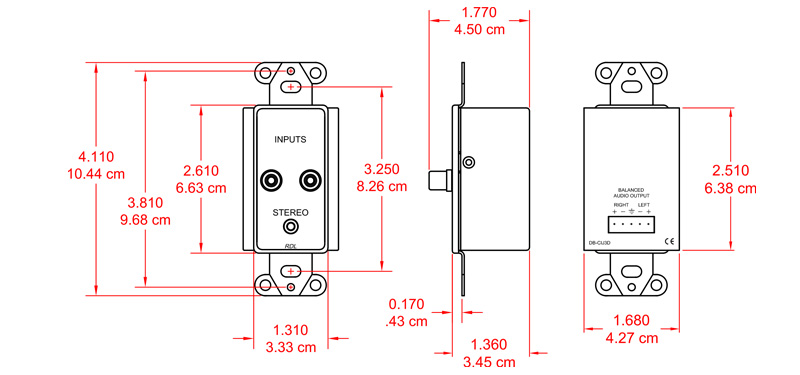

Dimensions: Height: 4.13 in. 10.49 cm
Width: 1.7 in. 4.32 cm
Depth: 2.15 in. 5.47 cm
Mounting Box Minimum Dimensions: Width: 1.80 in. 4.57 cm
Depth: 1.75 in. 4.45 cm
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.4 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.55 lbs.
