DEVA - DB8008 - Digital Silence Monitor with MP3 and IP Audio Backup Players

DB8008

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

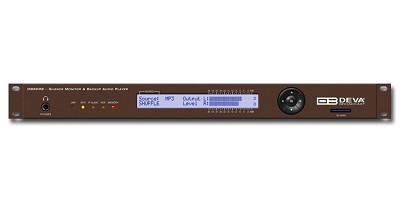

DEVA Broadcast DB8008 - Digital Silence Monitor with MP3 and IP Audio Backup Players.

Flexible, Reliable, Easy Configurable
DEVA’s DB8008 is a flexible and reliable tool, designed by our engineers specifically with the aim of solving one of the most significant problems in the radio industry – the one of radio silence. DEVA’s smart and highly practical solution detects signal loss and immediately switches the output to one of two alternative built-in backup players – MP3 or IP Audio. As an additional advantage, it also allows for easy integration into the existing setups of a single station and large radio networks alike.

The MP3 backup audio files and playlists can be uploaded to the device using any FTP client, making this model not only efficient but also easy to use. The audio storage capacity of the unit is an impressive 2GB for over 24 hours of audio playback without repetition. Moreover, the backup sources priority is selected by users themselves.

The DB8008 features a fully DSP-based core, professional AES/EBU digital audio inputs and outputs, and additionally allows for TCP/IP remote monitoring and control via SNMP and the WEB Interface, which means that the device can also be used for local content or regional advertisement spots. Another option provided by the model is the alert notifications via email, SNMP or analog opto-coupled outputs in case of signal loss.

Developed to provide users with a tool for an infallible and constant audio feed, the DB8008 is trademark DEVA device offering a simple and subtle solution to the problem of radio silence.

Specifications:

Main Analog Audio Inputs
ConnectorsBalanced XLR
Impedance600Ω or high impedance
Level2 ranges: 0 dBu or +12 dBu Jumper selectable, with software adjustments
Dynamic range>80dB
Digital Gain Adjust-10db to +10dB
Main Digital Audio Inputs
ConnectorsBalanced XLR, Coaxial, Optical
Sample Rates32, 44.1, 48, 96 kHz
Digital Gain Adjust-10db to +10dB
Aux Analog Audio Inputs
ConnectorsBalanced XLR
Impedance600Ω or high impedance
Level2 ranges: 0 dBu or +12 dBu Jumper selectable, with software adjustments
Dynamic range>80dB
Digital Gain Adjust-10db to +10dB
Aux Digital Audio Inputs
ConnectorsBalanced XLR, Coaxial, Optical
Sample Rates32, 44.1, 48, 96 kHz
Digital Gain Adjust-10db to +10dB
IP Audio Source
Number of Streamsone main and two alternative streams with auto-switch on failure
Stream Clientsshoutcast, icecast
Stream FormatsPCM, MPEG1 Layer 3 (MP3), HE-AAC (v.1 and v.2); all at 32, 44.1, 48kHz only
Bit RatesAll standard bit rates, including VBR
Number of ChannelsMono, Stereo
Buffer Size Adjust5Kb to 64Kb
Digital Gain Adjust-10db to +10dB
Built-In MP3 Player
Storage Capacity2Gb on SD Card
Supported encodersHE-AAC (v.1 and v.2), MPEG-1 Layer 3
MP3 bit rates32-320 kbps and VBR
Sample ratesAll sampling frequencies specified by MPEG1 L1/L2/L3 (32, 44.1 and 48kHz)
Supported file types*.MP3, *.AAC, *.M4A, *.M3U
Playback modesAlphabetical ascending and descending, Shuffle, Playlist and Shuffled playlist
Remote file managementBuild-in FTP server
Digital Gain Adjust-10db to +10dB
Analog Audio Output
ConnectorBalanced XLR
Frequency response±0.5dB, 5Hz-20kHz
Distortion<0.01% THD+N
Level+6dBu, user selectable
Dynamic range>80dB
Digital Gain Adjust-10db to +10dB
Digital Audio Outputs
ConnectorsBalanced XLR, Coaxial, Optical
Sample rates32, 44.1, 48kHz
Digital Gain Adjust-10db to +10dB
Phones Audio Output
Connector1/4" (6.3mm) jack, stereo
TypeHeadphones
Silence Detector
ThresholdAdjustable from -40dBfs to -5dBfs
Trigger time10-250 sec
User Interface
Indicators5 LEDs on front panel, 2 LEDs on rear panel
Web interfacecontrol, configuration and status information
SNMP interfacecontrol, configuration and status information
Front PanelLCD with Keyboard
Network
ConnectorRJ-45
TypeEthernet
Device DiscoveryUPnP support
Operating conditions
Temperature10°C - 45°C
Humidity< 75%, non-condensing
Power Requirements
Voltage115/230V AC (internal switch), 18VA
ConnectorIEC320, rear panel
Size and Weight
Dimensions (W;H;D)483 x 45 x 160 mm
Shipping Weight540 x 115 x 300 mm / 2.900 kg
HS Code8519891900
