IRT, Dual 2 way Passive RF Splitter

DDF-3101

P.O.A

* Ex GST. Check with us for the latest pricing

- Dual 2 way RF splitters.
- Operates in the frequency range of 0.25 MHz to 300 MHz.
- Suitable for 34/45/270 Mb/s data rates.
- No power required - totally passive.
- Connections made by BNC connectors.
- May be mounted in the same frame as other IRT Eurocards including VDA's, ADA's, detectors and processors.

The DDF-3101 is a dual 2 way RF splitter in a standard 3 RU Eurocard format. As such, it can be mounted in the same frame as other IRT Eurocards including VDA's, ADA's, detectors and processors.

It is primarily intended for use as a passive splitter for splitting data streams.
Each of the RF splitters is rated for 250 kHz to 300 MHz operation and is suitable for 34, 45 or 270 Mb/s data rates.

The DDF-3101 is a passive unit that requires no power to operate.

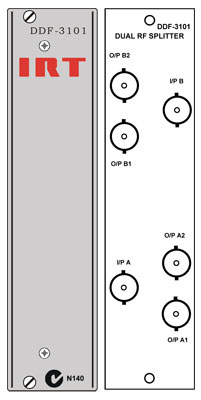

The DDF-3101 comes with a rear connector panel comprising of 75 Ohm BNC input and output connectors.

Download Product Datasheet
