IRT, Composite PAL/NTSC to 270 Mb/s SDI Converter

DVC-4360

P.O.A

* Ex GST. Check with us for the latest pricing

- Broadcast quality, full 12-bit video conversion.
- 2 SDI 270 Mbit/s outputs.
- 2 AES or 4 Analogue Audio Inputs.
- PAL or NTSC operation with auto switching.

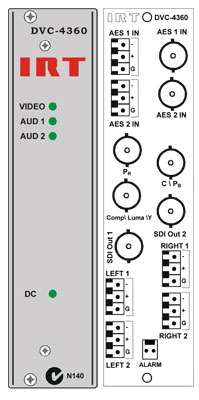

- Video input indicator on front panel.
- Standard IRT Eurocard format may be mixed with other IRT analogue and digital Eurocards in the same frame.

The DVC-4360 is a high performance PAL / NTSC composite to 270 Mbit/s serial digital (SDI) video converter, complete with analogue or AES audio insertion.

The DVC-4360 provides two SDI outputs.

Audio channel allocation and source selection is provided by links on the main board.

The DVC-4360 is designed to provide a broadcast quality composite to SDI conversion using the latest digital filtering techniques.

The composite input section automatically detects the composite input standard (PAL or NTSC) and generates the appropriate 625 or 525 SDI format.

Link settings are provided for default output on signal loss. This is either blue or black in 625 or 525.

Full 12 bit video processing and 20-bit analogue to digital audio converters are used in order to assure a high quality SDI signals suitable for broadcast and production monitoring applications.

The DVC-4360 is designed to fit IRT's standard Eurocard frames as well as IRT's 4000 series frame for use with IRT's SNMP system and may be used alongside any other of IRT's analogue or digital Eurocards.

Download Product Datasheet
