Lumantek VM16 | 16x16 HD-SDI Router with RCP Controller

EZ-LINE VM16

$3,782.00

* Ex GST. Check with us for the latest pricing

EZ - Line Router VM16

16x16 HD-SDI Router with RCP Controller
User Guide Related Products


EZ-line (VM16) is an SDI Matrix Router which supports SD/HD/3G-SDI. it consists of 16 Input and 16 Output Ports. This equipment can be controlled with USBS 2.0, RS422, Ethernet port via the communication protocol. Additional S/W is provided to control VM16 via USB2.0, RS422 and Ethernet. Moreover, RS422 communication protocol to support RCP(Remote Control Panel).



Features

  • Supports SD/HD/3G-SDI
  • Video IN/OUT Port (IN 16, OUT 16 / BNC Connector)
  • Supports Reference Input Port (B.B , Tri-Level)
  • Supports USB2.0, RS422, Ethernet Port
  • Provides simple S/W UI for PC

Router with Control
ez-Line Router VM16 is a 16 x 16 router supporting SD/HD/3G SDI signals.
Being able to send sharp and clear signals, the VM16 can be a splitter and a selector.

Control Device

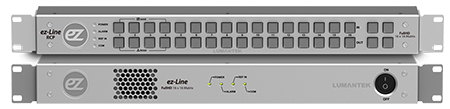

ez-Line Router VM16 has a few ways to control. One of the controllers is the RCP unit. You can install this unit along with the router to distribute your 16 signals to appropriate ports.

Software Control
Another function that ez-Line Router VM16 provides is the ability to control through computer software. The user can connect the router to a PC using an Ethernet cable and control through software.

SDK & API for your application
If you need to modify the control to your needs, then LUMANTEK will provide SDK & API for you. Create your own commands to control ez-Line VM16.

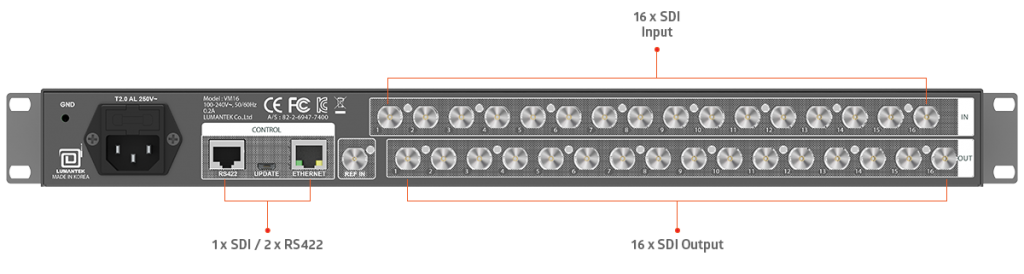

VM16_2
