Lumantek ez-MD+ SDI/HDMI Cross Converter

EZ-MD+

$736.56

* Ex GST. Check with us for Discounts and the latest Trade pricing!


Lumantek EZ-MD+

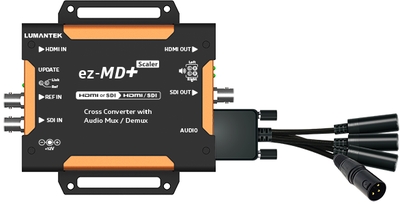

LUMANTEK’s ez-MD+ is a compact cross-converter for HDMI to SDI or SDI to HDMI. The genlock system allows synchronizing of signals to combine unpaired output signals. It supports XLR balanced audio support with audio delay controller.

HDMI and SDI Cross-Converting
LUMANTEK’s ez-MD+ is a compact Cross-Converter for HDMI to SDI or SDI to HDMI.

Up / Down Scaling and Screen Ratio Control
ez-MD+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'

Audio embedding/De-embedding with external XLR Audio
9 pin serial port to XLR * 4 is complimentary.

Audio Delay control
Use the rotary switch to control the audio delay of the video source (50ms Step).

Frame Synchronization
There is a “Free Running”, “Input Lock”, and “Genlock” mode to synchronize your video signal. Genlock system ensures proper synchronizing of the signals when aligning the source with external signal.

More Information here:

 Data Input

 SDI Video Input

 SD/HD/3G-SDI (BNC 75Ω) x1
 HDMI Video Input SD/HD/3G (HDMI Type A) x1
 Reference Input

 B.B , TRI  (BNC 75Ω) x1

 Audio Input

 D-SUB 9PIN (Female) x1

 Video Formats  - 720x480i@59.94/60
  - 720x576i@50
  - 1280x720p@50/59.94/60
  - 1920x1080i@50/59.94/60
  - 1920x1080p@23.98/24/25/29.97/30
  - 1920x1080p@50/59.94/60
 Data Output
 SDI VIdeo Output SD/HD/3G-SDI (BNC 75Ω) x1
 HDMI Video Output SD/HD/3G (HDMI Type A) x1
 Audio Output D-SUB 9PIN (Female) x1
 Video Formats  - 720x480i@59.94 (DIP SW : 1111)
 - 720x576i@50 (DIP SW : 0111)
 - 1280x720p@50 (DIP SW : 1011)
 - 1280x720p@59.94 (DIP SW : 0011)
 - 1280x720p@60 (DIP SW : 1101)
 - 1920x1080i@50 (DIP SW : 0101)
 - 1920x1080i@59.94 (DIP SW : 1001)
 - 1920x1080i@60 (DIP SW : 0001)
 - 1920x1080p@23.98 (DIP SW : 1110)
 - 1920x1080p@24 (DIP SW : 0110)
 - 1920x1080p@25 (DIP SW : 1010)
 - 1920x1080p@29.97 (DIP SW : 0010)
 - 1920x1080p@30 (DIP SW : 1100)
 - 1920x1080p@50 (DIP SW : 0100)
 - 1920x1080p@59.94 (DIP SW : 1000)
 - 1920x1080p@60 (DIP SW : 0000)
 Connections
 Power

 DC Power Input (DC Jack) x1

 Update Debus (Micro-USB) x 1
 DIP Switch (10 Pole) x 1
Video Output Resolution, Video Output Ratio, Video Input(SDI or HDMI),Audio(INT or EXT), Sync Mode : Free Running, Input lock, Genlock (B.B or TRI-Level), Audio Gain(0 or -10dB)
 Rotary Switch (10 step) x 1
 Audio Delay Control  (50ms Step)
 Display
 Link (Green x 1) HDMI or SDI Input video Detect
 Ref (Green x 1) REF Input Signal Detect
 Left (Green x 1, Red x 1) Input Audio Level Meter (Left)
Right (Green x 1, RED x 1) Input Audio Level Meter (Right)
 Electrical
 Power Input

 DC +11V to +13V

 Power consumption 8W(max.)
Operation Temperature

 0~45℃

 Physical


Dimension



130x100.4x26.9 (include connector)

 Weight 0.4kg (Typ.)
