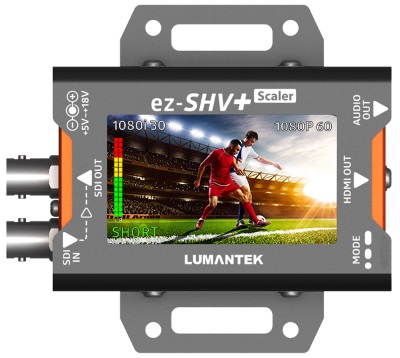

Lumantek SDI to HDMI Converter with 2.7" Monitoring Display



* Ex GST. Check with us for Discounts and the latest Trade pricing!

SDI to HDMI Converter with Display

You can easily monitor in/output resolution, cable length and eye-pattern at once. LUMANTEK's ez-SHV+ has a SDI LOOP output. Through the LCD screen, you can monitor incoming video. By using the 'dip switch', you can select the resolution from 480i to 1080p. You can also control the LCD Brightness and screen ratio.

Scalable Resolution / Screen Ratio Control

ez-SHV+ can change the resolution of the incoming video to any resolution ranging from 480i to 1080p60. You can also change the video displaying ratio. You can choose from either 16:9 (Full) or 4:3 (Pillar Box) screen ratio to fit your requirement. All these functions are controlled by 'dip switch'.

Low Power Consumption / Wall mountable

The Maximum power consumption of ez-SHV+ is less than 3 watts. Acceptable voltage ranges from 5v ~ 18v giving the user more flexibility while connecting electricity. ez-SHV+ has a wall mount option. You can alternative choose to set up at wall or not by changing side bracket.

Detect Cable Length Automatically

ez-SHV+ detects cable length automatically up to 190 m at 3G-SDI. Cable length will be shown as 'SHORT', 'MEDIUM' and 'LONG'.

More Information Here:


 Data Input
 SDI Video Input SD/HD/3G-SDI (BNC 75Ω) x1

 Video Formats

  - 720x480i@59.94/60
  - 720x576i@50
  - 1280x720p@50/59.94/60
  - 1920x1080i@50/59.94/60
  - 1920x1080p@23.94/24/25/29.97/30
  - 1920x1080p@50/59.94/60

  Data Output
 SDI LOOP Output SD/HD/3G-SDI (BNC 75Ω) x1
 Audio Output Stereo Jack x1
 HDMI Video Output SD/HD/3G (HDMI Type A) x1
 Video Formats

 - 720x480i@59.94 (DIP SW : 1111)
 - 720x576i@50 (DIP SW : 0111)
 - 1280x720p@50 (DIP SW : 1011)
 - 1280x720p@59.94 (DIP SW : 0011)
 - 1280x720p@60 (DIP SW : 1101)
 - 1920x1080i@50 (DIP SW : 0101)
 - 1920x1080i@59.94 (DIP SW : 1001)
 - 1920x1080i@60 (DIP SW : 0001)
 - 1920x1080p@23.98 (DIP SW : 1110)
 - 1920x1080p@24 (DIP SW : 0110)
 - 1920x1080p@25 (DIP SW : 1010)
 - 1920x1080p@29.97 (DIP SW : 0010)
 - 1920x1080p@30 (DIP SW : 1100)
 - 1920x1080p@50 (DIP SW : 0100)
 - 1920x1080p@59.94 (DIP SW : 1000)
 - 1920x1080p@60 (DIP SW : 0000)


 Power DC Power Input (DC Jack) x1
 DIP Switch (6 Pole) x1 Video In/Out Resolution, Video Output Ratio, LCD Brightness
 MODE (Push Switch) x 1 LCD ON/OFF, Menu Selection
 2.7 inch TFT LCD

Input Video Display, Input SDI Eye Pattern,
In/Output Video Resolution Display, Input Cable Length

 Power Input DC + 5V to + 18V
 Power Consumption 3W (max.)
 Operation Temperatur


 Dimension 86.3x57.2x26.6 (include connector)
 Weight 0.3 kg(typ.)
