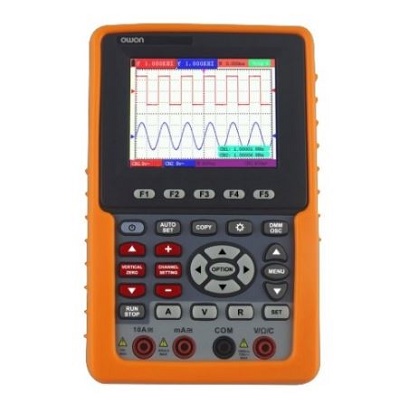

Handheld Series Digital Storage Oscilloscope

HDS1021M-N

$518.00

* Ex GST. Check with us for the latest pricing

Main Features:

  • 2 in 1 (DSO+Multimeter)
  • Auto-scale function
  • FFT function
  • 20 group automatic measurements options
  • Bandwidth 20MHz
  • USB data transmission supported
  • Rechargeable Li-ion battery
  • Waveform record and replay
  • Multimeter newly supported SCPI

Performance Specifications

Digital Storage Oscilloscope Performance Specifications
ModelHDS1021M-N
Bandwidth20MHz
Sample Rate (real time )500MS/s
Horizontal Scale (s/div)5ns/div~100s/div, step by 1~2.5~5
Rise Time (at input, typical)≤17.5ns
Display3.7 inch color display with TFT panel (640 × 480 pixels, 65535 colors)
Channelsingle
Input Impedance1MΩ ± 2%, in parallel with 20pF ± 5pF
Record Lengthmax 6000 points on each channel
Interpolationsin (x) / x
Probe Attenuation Factor1X,10X,100X,1000X
Input CouplingDC, AC, and GND
DC Accuracy (average)average >16 : ±(5% reading + 0.05div) for △V
Vertical Sensitivity5mV/div~5V/div (at input)
Vertical Resolution (A/D)8 bits (2 channels simultaneously )
Max Input Voltage400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Trigger TypeEdge, Video, Alternate
Trigger ModeAuto, Normal, Single
Trigger Level±6 divisions from screen center
Acquisition ModeSample, Peak Detect, and Average
DC Gain Accuracy±3%
Automatic Measurement

Vpp, Vavg, Vrms, Freq ,Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot,
Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B

Waveform Math+, -, ×, ÷, invert, FFT
Waveform Storage4 waveforms
Lissajous Figure Bandwidthfull bandwidth
Lissajous Figure Phase Difference±3 degrees
Communication InterfaceUSB
Power Supply100V-240V AC, 50/60Hz
Li-ion Battery7.4V, 6 hours operation
 Dimensions (W × H × D)180 × 115 × 40 (mm)
 Weight (without package)645 g
Multimeter Specifications
Full Scale Reading3(3/4) digit (max 4000-count)
diode0V-1.5V
Input Impedance10 MΩ
On / Off measurement< 50 (± 30) beeping
Voltage

VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)

Current

DC : 40mA, 400mA : ±(1.5% ± 1 digit), 20A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits)

Impedance400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
Capacitance51.2nF - 100uF : ±(3% ± 3 digits)
