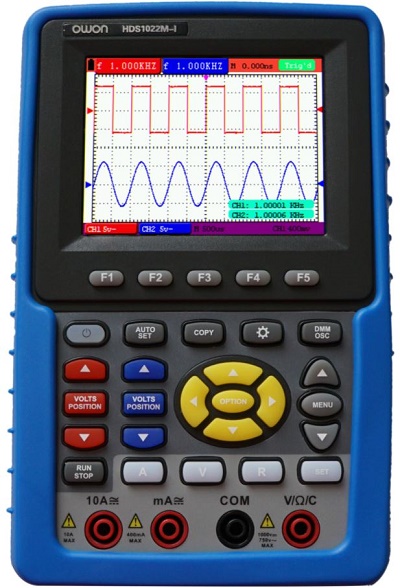

Handheld Series Digital Storage Oscilloscope

HDS1022M-I

$1,115.00

* Ex GST. Check with us for Discounts and the latest Trade pricing!


Features:
  • 2 in 1 (DSO + Multimeter)
  • With good ISOLATION between channels
  • Auto-scale function
  • FFT function
  • 20 group automatic measurement options
  • Bandwidth : 20MHz
  • USB data transmission supported
  • Rechargeable Li-ion battery
  • Multimeter newly supported SCPI

Also Available:

Performance Specifications

Digital Storage Oscilloscope Performance Specifications
ModelHDS1022M-I
Bandwidth20MHz
Sample Rate (real time )100MS/s
Rise Time (at input, typical)≤17.5ns
Record Length6K points
Channeldual, insulated ground of 1000 : 1
Display3.7'' color TFT LCD, 640 x 480 pixels
Floating Meas. Channelinsulated input ground between multimeter / oscilloscope mode
Input CouplingDC, AC, and GND
Input Impedance1MΩ±2%, in parallel connection with 15pF± 5pF
Horizontal Scale (s/div)5ns/div - 100s/div, step by 1 - 2 - 5
Interval (△T) Accuracy

single: ±(1 interval time + 100ppm x reading + 0.6ns),
average>16: ±(1 interval time + 100ppm x reading + 0.4ns)

Vertical Sensitivity5mV/div - 5V/div (at input )
Vertical Resolution (A/D)8 bits
Max Input Voltage400V (DC + AC / PK - PK, 1MΩ input impedance, probe attenuation in 10 : 1)
Trigger Type Edgerising edge, falling edge
Trigger Type Videoline, field, random line, odd / even fields
Trigger Type Alternate
Trigger ModeAuto, Normal, and Single
Automatic Measurement

Vpp, Vavg, Vrms, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Freq, Period,
Rise Time, Fall Time, Delay A→B↑ , Delay A→B↓ , +Width, -Width, +Duty, -Duty

DC Accuracy (average)average>16: ±(5% reading 0.05 div) for △V
Waveform Math+, -, *, / , FFT, invert
Waveform Storage4 waveforms
Lissajous Figure Bandwidthfull bandwidth
Lissajous Figure Phase Difference±3 degrees
Cursor Measurement△V, and △T between cursors
Communication InterfaceUSB host, and USB device
Batterybuilt-in Li-ion battery, 7.4V / 3500mAh
 Dimensions (W × H × D)180 x 113 x 40 mm
 Weight (without package)645 g
Multimeter Specifications
Full Scale Reading3(3/4) digit (max 4000-count)
diode0V-1.5V
Input Impedance10 MΩ
On / Off measurement< 50 (± 30) beeping
Voltage

VDC : 400mV, 4V, 400V : ±(1% ± 1 digit); max input : DC 400V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)

Current

DCA: 40mA, 400mA: ±(1.5% ±1 digit), 10A: ±(3% ± 3 digits)
ACA: 40mA: ±(1.5% ± 3 digit); 400mA: ±(2 ± 1 digit); 10A: ±(3% ± 3 digits)

Impedance400Ω : ±(1% ± 3 digits), 4KΩ / 40KΩ / 400 KΩ / 4MΩ: ±(1% ± 1 digit); 40MΩ: ±(1.50% ± 3 digits)
Capacitance51.2nF - 100uF : ±(3% ± 3 digits)

Contact
