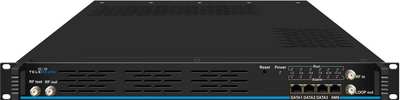

TeleDelta HDS2804-HDMI Series HDMI Encoder



* Ex GST. Check with us for Discounts and the latest Trade pricing!

TeleDelta HDS2804-HDMI-24

High Density 1RU HDMI Encoder Platform - available with up to 24x HDMI Inputs - part of the HDS2804-HDMI-X range.

The TeleDelta HDS2804-HDMI-X is a high density 1RU professional rack-mount H.264 (MPEG-4) HDMI Encoder, with capacity to encoder between 4 and 24 HDMI Inputs  (in increments of 4HDMIs)  along with up to 256 SPTS IP transport stream inputs for IP to DVB-T distribution.

The HDS2804-HDMI-X Incorporated 8x DVB-T COFDM DVB-T outputs for digital television distribution, along with 8x MPTS IP (multiprogram) IP transport stream outputs for IPTV delivery (UDP or RTP).

Optional functions of logo insertion, and on-screen messaging are an available on the HDS2804-HDMI-X platfrom making the HDS2804-HDMI-X a low-cost per channel headend encoding solution.

 Key Features:
  • Ingest up to 24x HDMI Inputs
  • Supports 6x 4HDMI Input Modules
  • Ingest up to 256 IP (SPTS) streams
  • H.264 (MPEG-4 Video Encoding)
  • Selectable Bit-rate encoding
  • MPTS IP transport Stream output
  • UDP / RTP IP Input support
  • Remote IP management
  • Onscreen Logo / Messaging (optional)

The HDS2804 Chassis are part of the HDS2800 Series and  can also be used with HDS2900 solutions for IPTV and DVB-T Networks.

 Datasheet and Techincal Details can be found here:
