CTC Union - ITP-G802SM

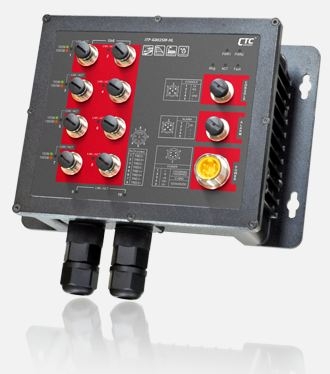

ITP-G802SM

P.O.A

* Ex GST. Check with us for the latest pricing

Description

ITP-G802SM series are managed industrial grade Gigabit switches with 8x 10/100/1000Base-T ports and/or 2 SFP Gigabit/Fast Ethernet ports that provide stable and reliable Ethernet transmission.The ITP-G802SM series provide L2 management functions supported include STP/RSTP/MSTP/ ITU-T G.8032 Ring and multiple u-Ring for redundant cabling, layer 2 Ethernet IGMP, VLAN, QoS ,Security, IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet.
Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for the harshest environments. Especially, ITP-G802SM series switches use M12 connectors to ensure tight, robust connections and to guarantee reliable and anti environmental disturbances operation, such as vibration and shock. ITP-G802SM series are compliant with EN 50155, covering power input voltage, surge, EFT, ESD, vibration, shock, thus making the switches suitable for industrial applications, such as vehicle, rolling stock, ship, vessel.
ITP-G802SM series are IP67 rated to protect against dust and water submersion. They are particularly used in environments with extreme temperature, high humidity, oil, dust and in outdoor environments requiring water-proof applications such as IP surveillance, city security. ITPG802SM series can also work with CTC Management platform SmartView to provide convenient, real-time and centralized network management.



Features

  • 8x 10/100/1000Base-T M12 and 2x 100/1000Base-X SFP Fiber (Total 10 Port) (ITP-G802SM)
  • M12 and M23 connector against vibration and shock
  • IP67 water proof design against dust and water (Figure 3)
  • Redundant and wide input range voltage, Low voltage (12/24/48VDC) and High Voltage (110/220VDC or 110/220VAC)
  • UL60950-1, CE, FCC, Rail Traffic EN50155,EN50121-4 certified
  • Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
  • Cable diagnostic, Measuring cable OK or broken point distance
  • Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
  • STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR) for redundant cabling
  • Provide up to 5 instances that each supports u-Ring, u-Chain or Sub-Ring type for flexible uses (Figure 5)
  • u-Ring for Redundant Cabling, recovery time<10ms in 250 maximum devices
  • DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
  • QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
  • IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
  • Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
  • IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
  • Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
  • Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
  • Support IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
  • RMON, MIB II, Port mirroring, Event syslog, DNS, NTP IEEE802.1ab LLDP
  • Support 5 operating mode in each port: Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave
  • Supports IPv6 Telnet server /ICMP v6
  • CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
  • Provides SmartConfig for quick and easy mass configuration
  • Supports SmartView for Centralized Management
