AVMATRIX 3G-SDI Quad Split Multiviewer



* Check with us for the latest pricing

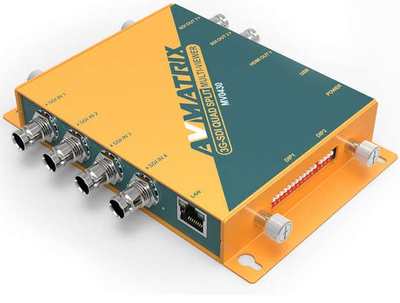

AV Matrix MV0430 Quad Split 3G-SDI Multi-viewer

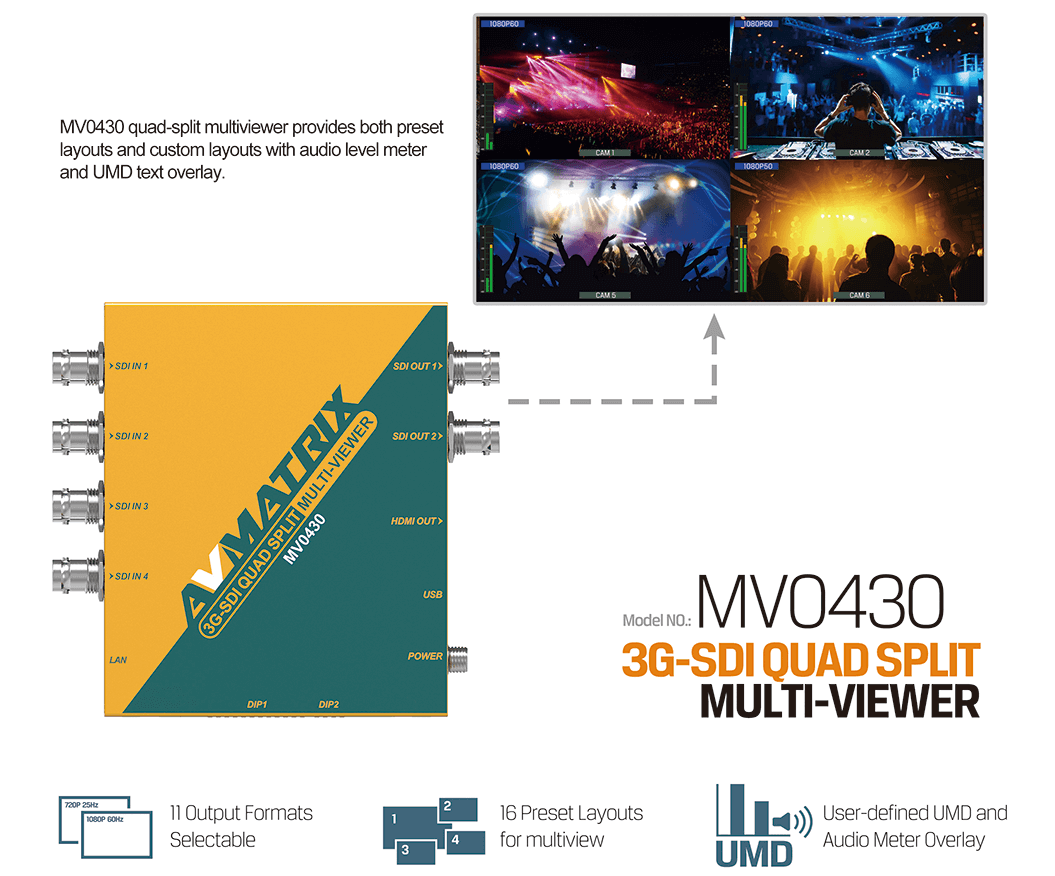

MV0430 is an exquisite and professional SDI multiviewer that features 4-channel 3G/HD/SD-SDI auto-adaptive inputs and 2-channel 3G-SDI as well as 1-channel HDMI outputs. A total of 16 preset layouts are provided for choices. Users can also adjust the size and position of 11-character UMD and audiometer overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post-production applications.

Key Features
  • 4xSD/HD/3G-SDI inputs with auto-detection
  • 2xSD/HD/3G-SDI and 1XHDMI outputs for multi-view
  • 11 Selectable SDI & HDMI output formats
  • 16 preset layouts both full screen and multi-view mode
