TeleDelta N-Male Connector Right Angle Connector Coaxial Cable
NM-RA-1/4-FLEX
CALL
* Ex GST... Call us for Discounts and the latest Trade pricing!
NM-RA-1/4-FLEX Product Specification

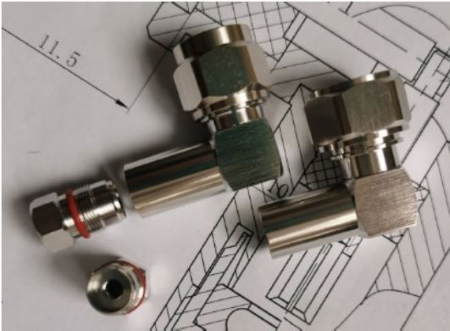

TeleDelta N-Male Connector Right Angle Connector
Suitable for 1/4 Inch Superflex 50ohm Coaxial Cable
Electrical Specifications
Frequency Range: DC ~ 3 GHz
Impedance: 50 Ω
VSWR: ≤ 1.15 @ 3Ghz
Insertion Loss: ≤ 0.15 @ 3Ghz
PIM: ≤ -155dB
Working Voltage: 1000 VRMS
Dielectric Withstanding Voltage: 2500 VRMS (DC)
Contact Resistance: Inner: 1.5 milliohms
Outer: 0.2 milliohms
Insultation Resistance: 5000 Megaohms (minimum)
Temperature Range: -40 ~ +85 °C
Mechanical Specifications
Environment: Indoor or Outdoor1
Durability: >100 Cycles
Mechanical Shock Test: MIL-STD-202, Method 213, Test Condition D
Vibration Test: MIL-STD-202, Meth. 204, Cond. A
Sealing: IP67
Connector Specifications
Inner Conductor: Brass Pin / Silver Plated
Outer Conductor: Brass / White Bronze Plated
Body: Brass / White Bronze Plated
Insulator: PTFE
Gasket: Silicon
Locking Nut: Brass / Nickel Plating
