IRT, 8 Ch CWDM Fibre Optic Multiplexer / Demultiplexer



* Ex GST. Check with us for the latest pricing

- Eight set CWDM optical wavelength inputs and outputs
- Uni-directional or bi-directional operation
- Low insertion loss
- SC/PC type of optical connectors

The OFM-4268 is a coarse wave division optical wavelength division multiplexer / demultiplexer (CWDM) for combining and separating up to eight optical signals of 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm and 1610nm wavelengths for either uni-directional or bi-directional transmission on the one fibre.

With the high cost of hiring or installing additional dark fibre it makes economical sense to maximise the use of existing infrastructure.

Used in combination with IRT's extensive range of fibre transmitters / receivers and interface modules, a myriad of different signals types can be sent down the one fibre. With IRT's four channel fibre multiplexer / demultiplexer modules, for example, up to thirty two SDI signals can be sent down a single fibre. Or up to one hundred and twenty eight ASI signals can be sent when also used with IRT's ASI multiplexer / demultiplexer modules.

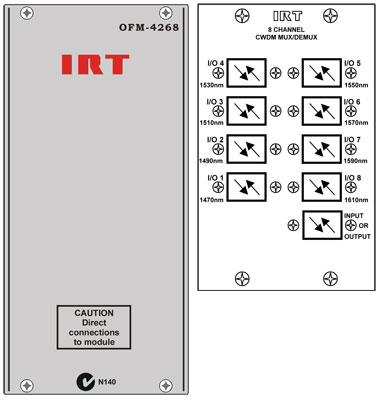

The OFM-4268 is a double width card designed to mount in IRT's 4000 series 3RU frame.

Download Product Datasheet
