Lilliput 13.3 inch 12G-SDI studio / broadcast monitor



* Ex GST. Check with us for Discounts and the latest Trade pricing!

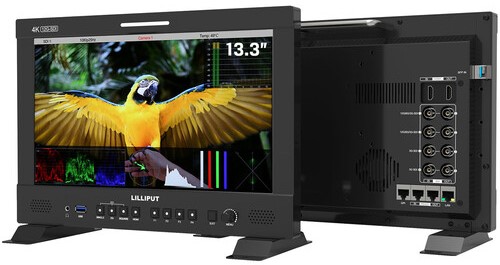

The Lilliput Q13 12G-SDI/HDMI Broadcast Studio Monitor is an ideal 13.3" native UHD 4K monitor for both studio and field situations. This monitor features a V-mount battery plate, making it useful in both indoor and outdoor environments. Supporting up to UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), enabling single-, dual-, and quad-link SDI input. Additionally, the monitor supports 12G-SFP+ input, allowing you to display images over fiber on this monitor. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream.

Key Features
  • 13.3" 3840 x 2160 Resolution Monitor
  • Supports up to 4K UHD Input
  • Supports Accurate Color Calibration
  • HDR Support, Load Custom 3D LUTs
  • 178° H/V Viewing Angle
  • 300 cd/m² Brightness
  • 1000:1 Contrast Ratio
  • On-Screen Markers, Focus Peaking
  • V-Mount Battery Plate
  • XLR 4-Pin 12-24 VDC Power Input

The Lilliput Q13 12G-SDI/HDMI Broadcast Studio Monitor automatically scales input video signals to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor audio without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, you can power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.

The Lilliput Q13 12G-SDI/HDMI Broadcast Studio Monitor comes with a variety of features that make it an exceptional tool for professional videographers. This includes peaking, check field, image rotation/flip, overscan, underscan, image freeze, pixel-to-pixel, false color, exposure, histogram, timecode (SDI-only), aspect ratio selection, screen markers, color space, HDR, and color temperature adjustment. When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front-panel USB port. Additionally, the monitor supports various Log formats, including SLog2, SLog3, CLog, NLog, ARRILiog, JLog, and User. It also supports various HDR formats, such as ST2084 300/1000/10000/HLG.

The Lilliput Q13 12G-SDI/HDMI Broadcast Studio Monitor also includes assignable buttons on the front panel, allowing you to quickly turn any four monitoring tools on and off without venturing into the monitor's menu system. The monitor also supports RS-422 via discrete in and out RJ45 connectors, enabling you to control the monitor from computer applications and link multiple monitors together. The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, ensuring that your monitor is displaying your image accurately. Additionally, an integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.
