Lilliput 15.6" 12G-SDI Professional Broadcast/Production Monitor

Q15

$3,413.00

* Ex GST. Check with us for Discounts and the latest Trade pricing!

Related Products | Lilliput Monitors | More info

The Lilliput Q15 is a stable work horse machine, packed with features and facilities for the serious photographer, videographer, or cinematographer. Compatible with a multitude of inputs - and featuring an optional 12G SDI SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording  -  a first for a Lilliput monitor.

Key Features

  • 15.6" 3840 x 2160 Resolution Monitor
  • Supports up to DCI 4K Input
  • Supports Accurate Color Calibration
  • HDR Support, Load Custom 3D LUTs
  • 176° H/V Viewing Angle
  • 330 cd/m² Brightness
  • 1000:1 Contrast Ratio
  • On-Screen Markers, Focus Peaking
  • Gold Mount Battery Plate
  • XLR 4-Pin 12-24 VDC Power Input

 Lilliput Q15 Overview. The Lilliput 15.6" 12G-SDI/HDMI Broadcast Studio Monitor is a 15.6" native UHD 4K monitor with a Gold mount battery plate, useful for ...

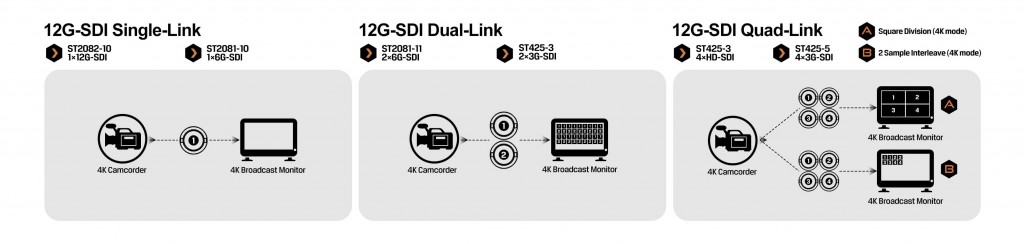

The 12G SDI inputs allow the units allow for multiple configurations of input. Single Link, Dual Link, and Quad link inputs mean you can use a either a single input or conjoined inputs to make up your 4K video input signal. This opens up the input workflow for the multiple types of camera to be attached into the monitor depending on the usage and configuration of the video capture environment.



12G SDI Inputs

HDR and 3D LUTs

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.

Audio

The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.

Assignable Buttons

Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.

Remote Control

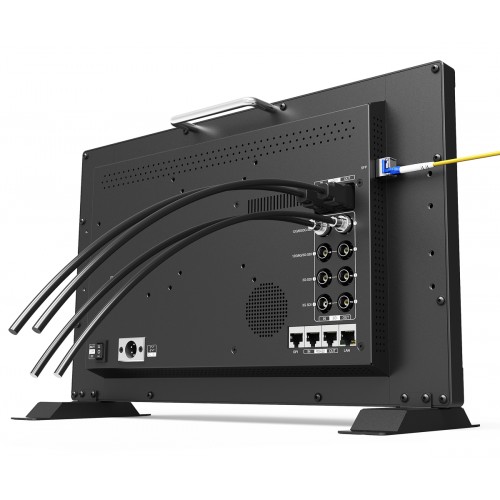

The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.

Calibration

The monitor supports color calibration using an optional PRO/LTE version of LightSpace CMS, to ensure your monitor is displaying your image accurately.

Fiber

An integrated slot accepts an optional SFP+ module, should you require SFP+ fiber connection.
