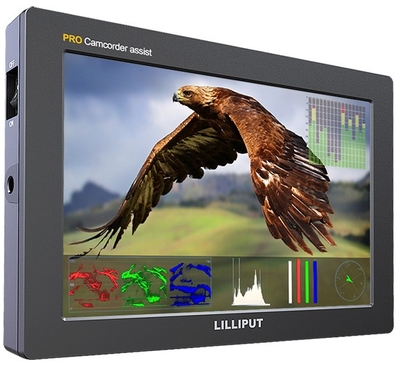

Lilliput Q7 Pro - 7 Inch Full HD-SDI Monitor

Q7 PRO

$884.00

* Ex GST. Check with us for the latest pricing

Lilliput  Q7 Pro (7" Full HD SDI Monitor With HDR/3D LUTs)

Overview Q7 Pro

  • 7" PRO SDI Monitor
  • 1920x1200, Full HD resolution,
  • 3D LUT load,
  • HDR,Gamma,
  • Adjustable Color Space,
  • Waveform PIP mode, time code,
  • SDI and HDMI cross conversion,
  • Metal housing, 22mm slim.



Specifications:

DISPLAY
  Display Screen  7"  IPS
  Physical Resolution  1920×1200
  Aspect Ratio  16:10
  Brightness  500cd/m2
  Contrast  1000:1
  Viewing Angle  170°/170°(H/V)
INPUT
  3G-SDI  1
  HDMI  1
  USB (3D LUT Load)  1
OUTPUT
  3G-SDI  1
  HDMI  1
AUDIO
  Speaker  1
  Ear Phone Slot  1
SDI FORMAT
  SMPTE-125M  480i(59.94)
  1080i(60/59.94/50)
  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-292M  1080p(30/29.97/25/24/24sF/23.98/23.98sF)
  SMPTE-296M  720p(60/59.94/50/30/29/25/24/23.98)
  SMPTE-372M  720p(60/59.94/50)

1080i(29.97/25/24/23.98)
  1080p(60/59.94/50/30/29.97/25/24/23.98)
  SMPTE-425M-AB  1080p(60/59.94/50)
  -Level A & Level B  720p(60/59.94/50/30/29.97/25/24/23.98)
  Level B 2x  1080i(60/59.94/50)
  ITU-R BT.656  576i(50)
HDMI FORMAT
  Full HD ~ HD  1080p, 1080i, 720p, 576p, 576i, 480p, 486i
POWER
  Current  1A
  Input Voltage  DC 7-24V
  Battery Plate  F970 / LP-E6
  Power Consumption  ≤12W
ENVIRONMENT
  Operating Temperature  -20℃~60℃
  Storage Temperature  -30℃~70℃
DIMENSION
  Dimension(LWD)  182×124×22mm
  Weight  405g
