Broadcast Tools, Relay Sentinel Equipment Controller

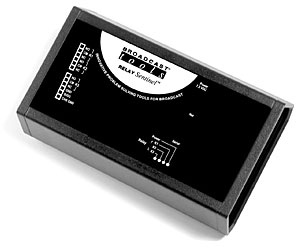

RELAY SENTINEL

$275.06

* Ex GST. Check with us for the latest pricing

The Relay Sentinel is the fastest, easiest, least expensive, and most reliable way to remotely control and/or monitored equipment over any IP network including private networks, IP-based industrial control networks, and the Internet. Users can operate the product using a web browser or web-enabled mobile device, while email notification may be configured to alert up to four recipients when alarms are detected. The user may also enable a sound effect to play when an alarm is generated. Logging of relay status, along with the site ID may be emailed from once an hour to once a day. The Relay Sentinel has three low-signal SPDT relays that can individually switch up to 1 Amp at 28V. Each relay can be turned on, off, pulsed or timed latched using the built in web pages.

The Relay Sentinel may be paired with the Status Sentinel to form a "Relay Extension Cord".

  • Logging of relay status, along with the site ID may be emailed in time spans from once an hour to once a day.
  • Three-SPDT 1 amp relays.
  • Plug-in euro-block screw terminals for all status inputs.
  • Four activity LED indicators.
  • Rear panel RJ-45, 10/100base-T LAN/Ethernet interface.
  • Fully RFI proofed.
  • Surge protected power supply. Domestic supply provided.
  • Four units may be mounted on one RA-1 1-RU shelf.

Applications: Web-enabled back-up transmitter ON/OFF control system. Receive end of a three channel web-enabled relay extension cord. Relay control and monitoring via a web browser and/or user defined PC application.
