1.Terracom Terra-IEX: 2 Channel Audio Over IP Encoder Decoder

TERRA-IEX

$584.00

* Check with us for the latest pricing

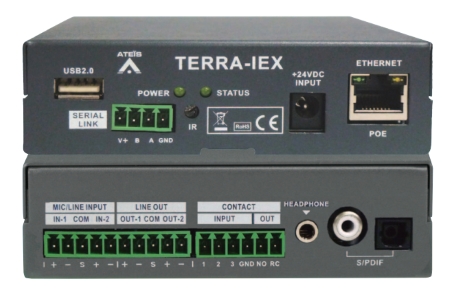

Terra-IEX: 2 Channel Audio Over IP Encoder/Decoder

The TERRA-IEX, a 2 channel audio over IP encoder/decoder is the perfect solution to operate as an audio source for your IP network. You can encode mic/line balanced inputs or an optional S/PDIF input into an unicast/multicast.

The same device provides you also 2 independent balanced outputs for fullduplex communication. By adding an USB memory stick (TERRA-IEXU model), play lists can be used as backup of the decoded stream or as a source for the IP streaming. The volume and the channel can be modified locally with an IR remote control.

Features:
  • 2 Mic/line balanced inputs
  • 2 independent balanced line outputs
  • 1 headphone output on mini-jack.
  • 1 SPDIF Transceiver - Optional
  • Audio inputs: maximum level + 5 dB, bandwidth 20 Hz - 20 kHz
  • Audio outputs: maximum level + 5 dB, bandwidth 20 Hz - 20 kHz
  • Ethernet interface including POE (Power Over Ethernet).
  • 24 VDC power supply (if no POE available).
  • G.711, G.722, MP3 audio encoding/decoding.
  • 1 USB port for USB memory stick (TERRA-IEXU model)
  • Power & Status LED.
  • IR receiver - Optional
  • 3 contact inputs
  • 1 relay output
  • RS 232 on Euro Block
  • Power consumption: 3 W
  • Weight: 434 g
  • Dimensions (mm): Depth 104, Height 32, and Width 109

Refer to the wider TERRA range for audio encoders, audio decoders, audio over IP and IP audio systems

View the Terr-IEX Datasheet here.
