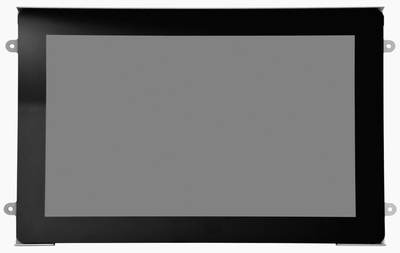

10.1" Open Frame USB Multi Point Capacitive Touch 1280x800 Display (UM-1080C-OF)

UM-1080C-OF

$673.18

* Check with us for the latest pricing

Mimo UM-760C-OF

Mino Monitor UM-1080C-OF Mimo 10.1" Capacitive Touch Open Frame 1280x800 LCD Display

Multi Point Capacitive Touch Open Frame 10.1” IPS USB Monitor
The UM-1080C-OF/UM-1080CH-OF is our widest viewing angle open frame 10.1" monitor. The UM-1080C-OF/UM-1080CH-OF is a 10.1” open frame capacitive touch monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The UM-1080C-OF/UM-1080CH-OF  open frame capacitive touch display is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.

Available in Single Cable USB Video
Utilizing the same single cable USB display technology as our line of displays, the UM-1080C-OF is our widest viewing angle 10.1” monitor. The screen can display in either landscape or portrait orientations and has nearly 180 degree viewing angles, all while sending video, touch, and power over a single USB connection.

 And now available with HDMI
Now optionally available with the ubiquitous HDMI input for video. Previously only available with the convenience of single cable USB video, the UM-1080CH-OF from Mimo Monitors now offers HDMI to supplement where USB video is not supported or inconvenient. With the HID compliant touch screen plus HDMI video, the new UM-1080CH-OF can be installed to almost any platform without drivers.

Uniquely, this new monitor line still reduces number of cables. While a typical HDMI touch display will require 3 separate cables, the new HDMI touch displays from Mimo Monitors only require 2 cables. This simplifies connection, and makes for a more attractive installation.

Note to Mac OS users: requires additional purchase of $35USD driver to activate touchscreen capability.

 Specifications
  • 10.1” diagonal, IPS, 16:10, 1280x800 Resolution
  • Multi Point Capacitive Touch
  • Viewing angles: 85/85/85/85
  • Contrast ratio: 800:1
  • Luminance, White: 350 CD/m2
  • Rear 4 point mounting for secure installation

Utilizes DisplayLink technology that provides video, touch and power over a single USB connection. (UM-1080C-OF) or HDMI (UM-1080CH-OF)

Ultra-light, weighs less than 1 pound
Can be applied as a secondary customer-facing display in retail POS environments, kiosks, gaming, and more.
As with all our monitors, the Mimo UM-1080C-OF is compatible with Windows 7 & 8, Linux, and Mac OS.
Mechanical drawings available upon request

Download the Datasheet Here:
