Lumantek, RF Capture and Playback Test System



* Ex GST. Check with us for the latest pricing

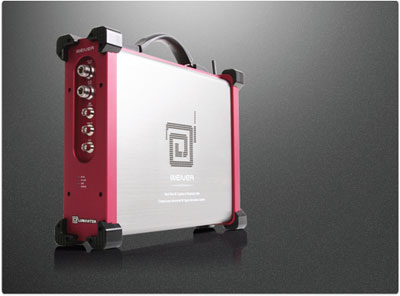

Weiver is a must-have instrument for RF engineers, device manufacturers and terrestrial broadcasters, where field testing is mission critical. Weiver records in real-time and regenerates RF signals covering the bandwidth range of 8M and/or 24M in almost any environment, in the lab or in the real world.

Capture worldwide broadcasting standards of DTV (ATSC, DVB-T/H, DVB-C, DMB, CMMB, DTMB, ISDB-T/B, OpenCable, and ATSC-M/H), ATV (NTSC, PAL), FM Radio, RDS and TMC.

Because Weiver is shipped with both frequencies pre-installed it equates to hassle-free, one-click SDR upgrades without costly downtime due to unnecessary trips to the factory.

  • Real-time capture and playback
  • Arbitrary waveform generator with I/Q data
  • External trigger function
  • 1 Hz frequency resolution (capture & playback)
  • Highly-stable, internal SSDs with lightning-fast read/write speeds
  • Value for money features
  • Low TCO
  • Rapid, global technical & warranty services
  • Ultra-small footprint & featherweight (5kg)
  • Ultra-low power consumption (50 W) for in-car deployment
  • Secure Ad-Hoc (WiFi ) wireless connectivity
  • eSATA connectivity for external SSD (opt.) for real- time capture & playback / backup
  • Export signal data for reporting and documentation
  • Built-in A-GPS module with data compatible with third-party mapping services
  • Instant, one-click programmable bandwidth upgrades without costly downtime and unnecessary trips to the factory

Download Product Datasheet
