RDL Stereo Audio Distribution Amplifier - 1X4

EZ-ADA4X

$441.82

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

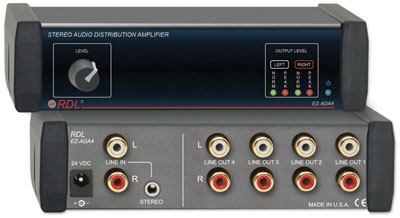

EZ-ADA4

Stereo Audio Distribution Amplifier – 1X4

One Stereo Input to Four Stereo Outputs
Unbalanced Inputs on MINI or RCA Jacks
Unbalanced Outputs on RCA Jacks
Inputs and Outputs on Rear Panel
Front-Panel LEVEL Control
Dual-LED VU Meter for Each Channel
Gold-Plated Connectors
Front-Panel Stereo Audio Metering
Knob for Easy Level Adjustment

Description

The EZ-ADA4 is a stereo audio distribution amplifier with gain adjustment and audio level metering. The input is connected through RCA jacks or a mini-jack. A front-panel knob adjusts for high or low input levels using the left and right channel LED VU meters. Four stereo outputs are provided on RCA jacks. The EZ-ADA4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.

Specifications

Inputs (2): Stereo on dual RCA jacks or stereo mini jack, > 10 kΩ, −10 dBV nominal, +22 dBV max.
Level control: Off to 12 dB gain above nominal
Outputs (4): Stereo on dual RCA jacks, −10 dBV nominal, +16 dBV max.
Frequency Response: 10 Hz to 20 kHz (±0.01 dB)
THD+N: < 0.03%
Crosstalk: <−80 dB (1 kHz)
Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
Noise: <−85 dB (below −10 dBV output)
24 Vdc power supply current: 20 mA (idle), 60 mA (max.)
Case dimensions: 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size: ⅓ rack width.
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.565 lbs.
Shipping Weight: 0.95 lbs.
Package Dimensions: 9.5 x 7 x 2.25 in.

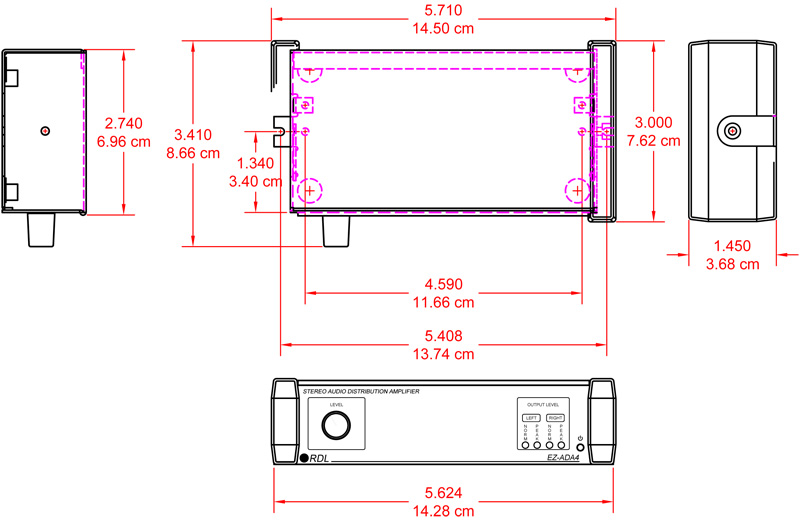

Dimensions

Download

EZ-ADA4 Data Sheet PDF Download
