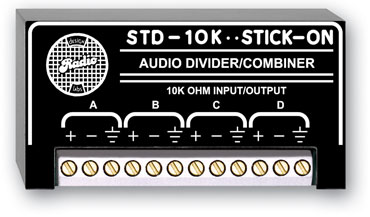

RDL Passive Audio Divider/Combiner - 10 k Ohm

STD-10K

$191.45

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

STD-10K

Passive Audio Divider/Combiner – 10 kΩ

10 kΩ Operation
Combine Audio Signals to a Single Output
Filter RF from an Audio Line
Combine Stereo Signals
Feed a Mono Signal to Stereo Inputs
Combine Multiple Mics to a Single Amp
Compactness of RDL STICK-ONs®

Description

Each STD module is a resistive branching network with RF filtering on each of the four channels. Any channel, A through D, may be either an input or an output. This permits combining stereo signals into mono inputs, splitting mono signals to multiple inputs, and even combining microphones with output shorting switches into a single amplifier input. The STD modules are available in 150 Ω, 600 Ω and 10 kΩ models. All inputs and outputs are balanced.

Specifications

WEEE weight: 0.135 lbs.
Shipping Weight: 0.185 lbs.
Circuit Type: Passive
Circuit Configuration: Balanced
Input/Output Impedance: 10 kΩ
Number of Inputs / Outputs: 4 total; usable in any combination; split
1 in to 3 out; 2 in to 2 out; 3 in to 1 out
Insertion Loss: 3 dB
Isolation Between Channels: 3 dB (use RDL mixers or distribution
amps for isolation)
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.
Maximum Signal Input: +22 dBu
Power Requirement: Passive (not required)
Package Type: Cardboard Box

RDL Passive Audio Divider/Combiner - 10 k Ohm

STD-10K

$191.45

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

STD-10K

Passive Audio Divider/Combiner – 10 kΩ

Description

Specifications

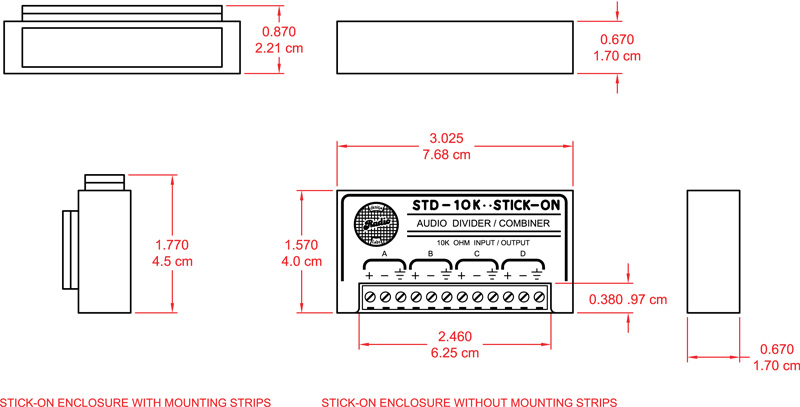

Dimensions
