RDL 3 Band Line Level Equalizer

ST-EQ3

$320.73

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-EQ3

3 Band Equalizer – Line Level

3-Band Audio Equalization
Custom Tailored Audio Bandwidth
Adjust To Pass Voice-Band Audio
Adjust To Produce Smile-Curve for Music
Low Noise and Low Distortion Equalization

Description

The ST-EQ3 features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 Ω balanced, and is intended to drive unbalanced or balanced lines of 150 Ω or higher impedance. Equalization is accomplished by three active circuits, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Setup of the ST-EQ3 is assisted by a peak overload LED which indicates excessive pre or post EQ levels.

Specifications

Tariff code: 8543.70.9860
WEEE weight: 0.12 lbs.
Shipping Weight: 0.17 lbs.
Package Dimensions: 2 x 2 x 4 in.
Package Type: Cardboard Box

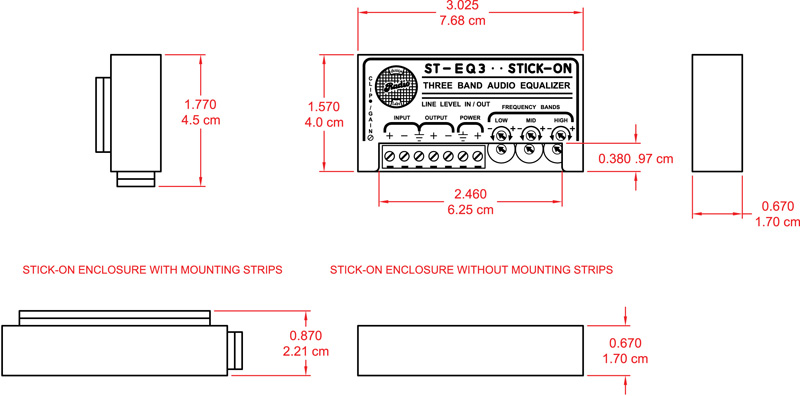

Dimensions: Height: 0.7 in. (1.7 cm), Width: 3 in. (7.6 cm), Depth: 1.6 in. (3.9 cm)
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 25 mA
Bandwidth at 3dB EQ: LOW Band: 20 Hz to 300 Hz
MID Band: 200 Hz to 7 kHz
HIGH Band: 3 kHz to 30 kHz
Ambient Operating Environment: 0° C to 55° C
Center Frequencies: LOW Band: 80 Hz
MID Band: 1 kHz
HIGH Band: 30 kHz
Audio Output: +4 dBu nominal, 150 Ω balanced
Gain: OFF to unity (adjustable, ± EQ adjustment)
THD+N: < 0.030%; 0.010% typical (1 kHz flat response)
Input: 100 kΩ balanced or unbalanced bridging; line-level
Frequency Response: 20 Hz to 22 kHz (EQ set flat; ± 0.5 dB), into 600 Ω; 10 Hz to 22 kHz (EQ set flat; ± 0.5 dB), into bridging load
CMRR: > 60 dB (50 to 120 Hz)
Noise: < -80 dB (below +4 dBu)
