RDL Stereo Headphone Distribution Amp - 1X4 Rear-Panel Outputs

EZ-HDA4BX

$490.91

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

EZ-HDA4B

Stereo Headphone Distribution Amp – 1X4 Rear-Panel Outputs

One Stereo Input to Four Stereo Outputs
Unbalanced Inputs on Rear Panel
Input on MINI, 1/4″ (6.3 mm) or RCA Jacks
Headphone Outputs on Rear Panel
Outputs on Mini-Jacks
Front-Panel LEVEL Control for Each Output
Gold-Plated RCA Input Connectors
Each Output is Driven Separately
Knobs for Easy Level Adjustment

Description

The EZ-HDA4B contains four stereo headphone amplifiers with individual front-panel volume controls. Headphone outputs are provided on rear-panel mini-jacks. One stereo input signal feeds all the amplifiers. Stereo RCA jacks, a mini-jack and a 1/4″ jack are provided for connecting the input source. The EZ-HDA4B is used in music stores, houses of worship, studios, museums, home component systems and commercial sound systems.

Specifications

Inputs (3): Stereo on dual RCA jacks, stereo mini jack or 1/4” (6.3 mm) TRS, > 10 kΩ, -10 dBV nominal, +8.5 dBV max. (RCA and 1/4”), -16 dBV nominal, +2 dBV max. (Mini)
Outputs (4): Stereo on Mini jacks (rear panel), 60 mW (100 Ω load)
Level control: Off to +2.5 dB gain (RCA and 1/4” inputs, 100 Ω output load), Off to +9 dB gain (Mini input, 100 Ω output load)
Frequency Response: 20 Hz to 50 kHz (±1.5 dB, 100 Ω load)
THD+N: < 0.1% (10 mW output, 100 Ω load)
Crosstalk: < -75 dB (1 kHz)
Noise: < -95 dB (below 10 mW output, 100 Ω load, maximum gain)
24 Vdc power supply current: 40 mA (idle), 65 mA (max.)
Case dimensions: 5.75” (14.6 cm)W x 3” (7.6 cm)D
Mounting size: 1/3 rack width.
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.575 lbs.
Shipping Weight: 0.975 lbs.
Package Dimensions: 9.5 x 7 x 2.25 in.

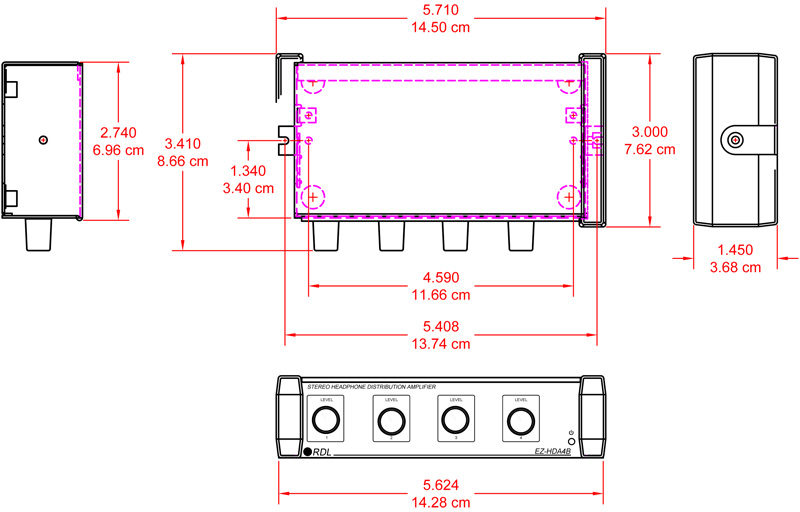

Dimensions

Download

EZ-HDA4B Data Sheet PDF Download
