RDL HUM KILLER Audio Isolation Module

AV-HK1X

$351.00

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

AV-HK1X

“HUM KILLER” Audio Isolation Transformer – XLR input and output

Ground Isolation in Balanced Line
Line-Level Ground-Loop Elimination
Balanced Mono Galvanic Isolation
Isolation in Rugged Field Case
Portable or Permanent Isolation Module

Description

The AV-HK1X is a mono transformer isolation module for use with a balanced, low impedance source and either a low or high impedance load. Input and output connections are provided on XLR jacks with gold-plated contacts.

The shield (pin 1) connection of the INPUT jack is electrically isolated from the case and from the output ground (pin 1) at audio frequencies. The ground (pin 1) connection of the OUTPUT jack is connected to the case shield. The user audio source, such as a mixer, preamplifier or other professional audio product, connects to the AV-HK1X input. The module output should be connected to the input of the grounded amplifier or mixer in the audio system.

Galvanic isolation between the input and output is provided by a studio quality audio transformer. The AV-HK1X breaks the “ground loop” connection that can produce hum in a sound system. The input connector shield does provide a radio frequency ground return, thereby preserving system immunity to radio interference.

The AV-HK1X is a rugged product designed for portable use. For fixed installations, a mounting bracket is included.

Specifications

Input: +4 dBu nominal
Output: +4 dBu nominal
Frequency Response: 20 Hz to 50 kHz (± 0.1 dB)
THD+N: < 0.15% (20 Hz to 20 kHz; 150 Ω source, 10 kΩ load);
0.002% @ 1 kHz
Finish: RDL Dark ULTRASTYLE™ (dark gray with beige lettering)
Ambient Operating Environment: 0° C to 55° C

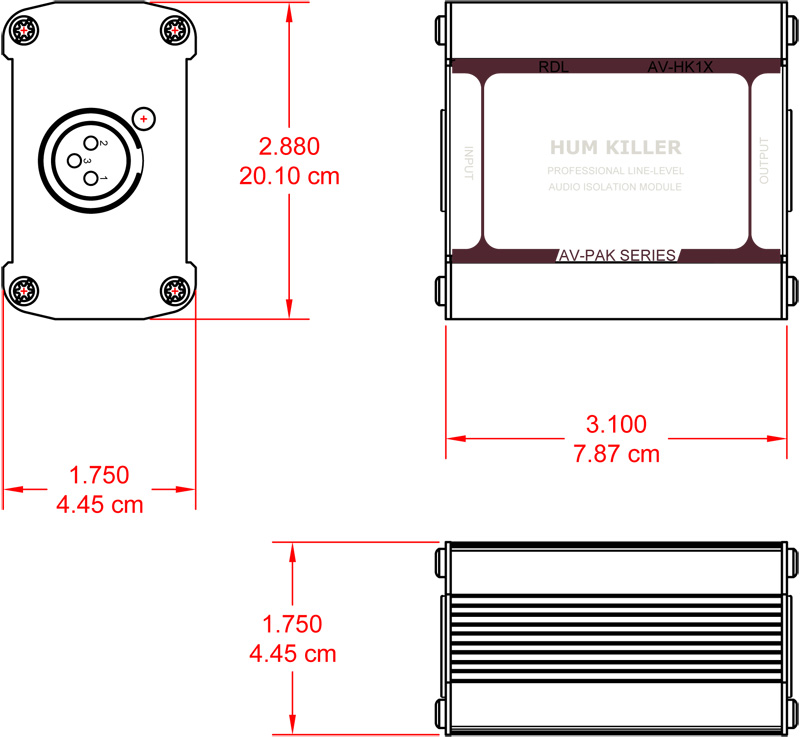

Dimensions: Height: 1.75 in. 4.45 cm (unmounted); Height: 1.95 in. 4.95 cm (mounted); Width: 2.90 in. 7.37 cm; Length: 73.25 in. 8.26 cm
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.725 lbs.
Shipping Weight: 1.105 lbs.
Package Dimensions: 4.375 x 7 x 2.25 in.
