RDL Dual Balanced/Unbalanced Line Amplifier

STA-1

$483.55

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

STA-1

Dual Balanced/Unbalanced Line Amplifier -12 to 20 dB Gain

Up to 20 dB Gain in an Audio Line
Conversion from Balanced to Unbalanced
Conversion from Unbalanced to Balanced
Conversion from High to Low Impedance
Conversion from Low to High Impedance
Bridge an Audio Line Feed
Precisely Match Audio Levels

Description

The STA-1 is a dual-channel line-level preamplifier with bridging inputs, adjustable gain or loss, and low-impedance outputs. Each of the two identical circuits is both an electronic line transformer and a line amplifier. Hook up the STA-1 just like a pair of audio transformers with gain. True dc amplifiers produce unsurpassed audio clarity, high common-mode rejection, ultra-low distortion and low noise. The STA-1 is perfect for most line amplification, impedance or balanced/unbalanced conversion.

The STA-1 operates from floating or bipolar dc power. For installations where ground-referenced power is preferred, use the STA-2A Dual High Gain Line Amplifiers.

Specifications

Amps per STA-1: 2 identical circuits (stereo or dual mono operation)
Gain: 20 dB (adjustable, separate controls for each channel)
Input Impedance: 10 kΩ bridging
Input Configuration: Balanced or unbalanced
Output Impedance: 200 Ω balanced (drives 600 Ω or 10 kΩ lines)
Output Configuration: Balanced or unbalanced
Frequency Response: dc to 25 kHz (± 0.25 dB)
THD+N: <0.03%
Output Level: +4 dBu
Headroom: 18 dB (at rated output of +4 dBu)
Noise: <-75 dB (referred to +4 dBu)
CMRR: -50 dB to (50 to 120 Hz)
Crosstalk: Better than 75 dB
Ambient Operating Environment: 0° C to 55° C
Power Requirement: FLOATING, 24 Vdc @ 50 mA
Package Type: Cardboard Box
WEEE weight: 0.14 lbs.
Shipping Weight: 0.19 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

RDL Dual Balanced/Unbalanced Line Amplifier

STA-1

$483.55

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

STA-1

Dual Balanced/Unbalanced Line Amplifier -12 to 20 dB Gain

Description

Specifications

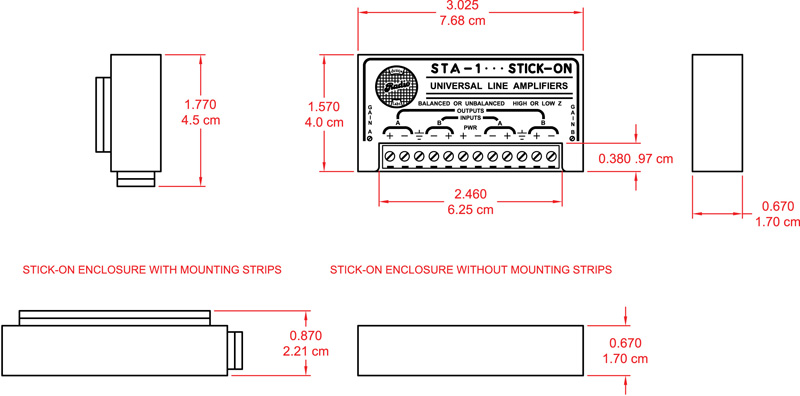

Dimensions
