RDL Manual Voice-Over / Paging Module

ST-VP1

$445.09

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-VP1

Voice-Over / Paging Module – Manual

High-Quality Voice-Over Mixing
Noiseless Paging
Single Input Adapted for Paging or Voice-Over
Selectable Fade-Under or Hard-Cut
Adjustable Fade DEPTH and RATE
Soft Audio Switching

Description

The ST-VP1 is intended for voice-over paging with user adjusted and controlled FADE or CUT between two input sources. This unit is also perfect for voice-overs where precise and consistent fade levels are required. Automatic operation can be achieved when used in conjuction with RDL´s® ST-ACR products.

Specifications

Inputs (2): Balanced line level (or unbalanced)
Input Impedance: 20 kΩ
Input Signal Range: -20 dBu to +18 dBu
Output: +4 dBu balanced (nominal)
Gain: Adjustable using multiturn potentiometer
THD+N: < 0.01% (20 Hz to 20 kHz, no compression)
Frequency Response: 20 Hz to 20 kHz (± 1 dB)
Noise: < -70 dB
Indicators (2): 1 LED indicating proper music level 1 LED indicating proper voice level
AGC/Compressor: 18 dB range; 6 dB compression at normal input level
Attack Time: 25 ms
Release Time: 2.5 seconds
Voice Trigger Level: 24 dB below operating level
Music Fade Depth: Adjustable 0 dB to −25 dB, or off
Music Recovery Delay: Adjustable 2 seconds to 4 seconds
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 35 mA
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.145 lbs.
Shipping Weight: 0.2 lbs.
Package Dimensions: 2 x 2 x 4 in.

RDL Manual Voice-Over / Paging Module

ST-VP1

$445.09

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-VP1

Voice-Over / Paging Module – Manual

Description

Specifications

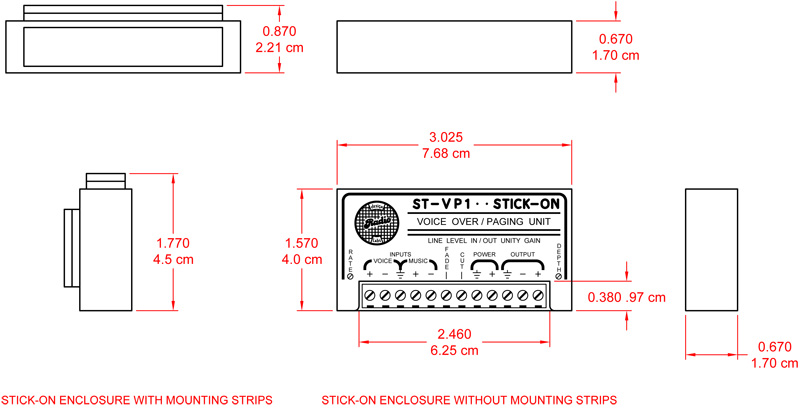

Dimensions

Download
