RDL 4x1 Unbalanced Audio Switcher

ST-SX4

$337.09

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-SX4

Unbalanced Audio Switcher – 4×1

Select 1 of 4 Unbalanced Audio Sources
Audio Selection from Remote Location
Remote Switching from Single Control Pair
All Solid-State Audio Switching
Slave Capability for Stereo Switching

Description

The ST-SX4 accepts up to four unbalanced audio sources. Any of these sources may be selected to feed the output, or all sources may be switched off. The output from the ST-SX4 is unbalanced. Control of the module is accomplished through a single input terminal. Connection of a specified resistance between the CTRL input and ground causes the desired input to be switched on. The necessary external resistors are supplied with the ST-SX4. The ST-SX4 may be remote controlled using the D SERIES-RC4ST remote control.

Specifications

22 kΩ
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 45 mA
Input Selected Resistance Value
Control Input: Single terminal to be connected to ground terminal to select desired channel.
Control Input Resistance: 10 kΩ (pullup to +15 Vdc)

CONTROL
Residual Noise: < -70 dB (referred to -10 dBV)
Off-Channel Attenuation: > 85 dB @ 1 kHz
> 80 dB @ 10 kHz
> 75 dB @ 20 kHz
Crosstalk: Below noise floor
Output Impedance: < 50 Ω, unbalanced
Input Impedance: 100 kΩ, unbalanced
Frequency Response: 15 Hz to 40 kHz (± 0.5 dB)
THD+N: < 0.1% Typ. 0.05%
Headroom: 23 dB
Gain: Unity
Input and Output Level: -10 dBV
2 6.8 kΩ
1 2.7 kΩ
None 0 Ω (short to GND)

AUDIO
Ambient Operating Environment: 0° C to 55° C
Package Type: Cardboard Box
WEEE weight: 0.16 lbs.
Shipping Weight: 0.21 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

RDL 4x1 Unbalanced Audio Switcher

ST-SX4

$337.09

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-SX4

Unbalanced Audio Switcher – 4×1

Description

Specifications

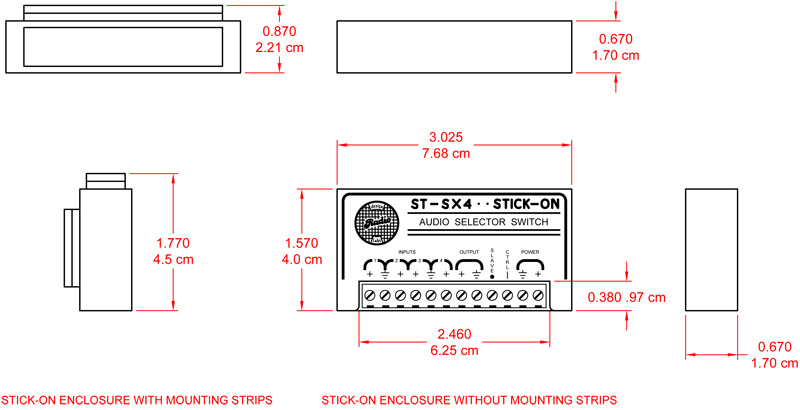

Dimensions
