RDL 3 Input Line-Level Audio Mixer

ST-MX3

$412.36

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-MX3

3 Channel Audio Mixer – Line input and output

Mix Line-Level Signals
Three Individually Adjustable Inputs
Add Additional Line Level Inputs to an Existing Mixer
Combine Signals of Different Level, Impedance or Balanced /Unbalanced Configuration
Isolation Between Input Signals
Low-Noise and Low-Distortion Performance
RDL® SupplyFlex™ Power Input Configuration

Description

The ST-MX3 is a line-level mixer module in the STICK-ON Series of products. It provides audio mixing of three line-level inputs with individual input gain adjustments. The line-level output is capable of driving either high or low impedance, balanced or unbalanced loads.

The ST-MX3 operates from ground-referenced floating or bipolar dc power.

For installations with microphone level inputs, use the ST-UMX3 Universal Audio Mixer.

Specifications

Inputs (3): 30 kΩ balanced or unbalanced bridging
Input Level: -20 dBu to +18 dBu (for +4 dBu output)
-24 dBu to +14 dBu (for 0 dBu output)
Output: 400 Ω to drive low or high impedance balanced or unbalanced lines
Output Level: +4 dBu nominal, (adjustable; unbalanced output 6 dB below balanced line level)
THD+N: < 0.03% (10 Hz to 20 kHz)
Frequency Response: 10 Hz to 20 kHz (± 0.5 dB)
Noise : < -80 dB (all inputs @ 10 dB gain, referenced to +4 dBu)
Headroom: 18 dB
Gain (each input): -14 dB to +24 dB (adjustable)
CMRR: > 50 dB (50 to 120 Hz)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED or FLOATING, 24 Vdc @ 55 mA
Package Type: Cardboard Box
WEEE weight: 0.12 lbs.
Shipping Weight: 0.17 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

RDL 3 Input Line-Level Audio Mixer

ST-MX3

$412.36

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-MX3

3 Channel Audio Mixer – Line input and output

Description

Specifications

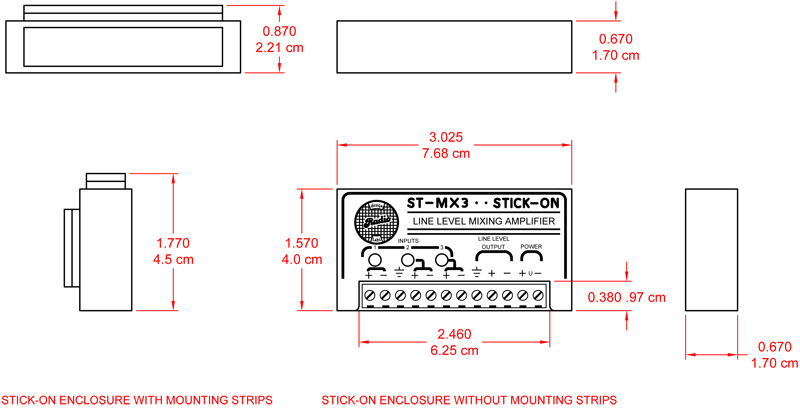

Dimensions
