RDL 3 Mic/Line Input Universal Audio Mixer

ST-UMX3

$442.64

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-UMX3

3×1 Universal Audio Mixer – 3 microphone or line inputs x 1 microphone or line output

Audio Mixing with Up To Three Inputs
Switch-Selectable Mic or Line Inputs
Switch-Selectable Mic or Line Output
Add Additional Microphone or Line Level Inputs to an Existing Mixer
Combine Signals of Different Level, Impedance, or Balanced /Unbalanced Configuration

Description

The ST-UMX3 is a three-channel audio mixer for combining mic-level or line-level signals to a single output. A MIC/LINE switch is provided for each input. A separate MIC/ LINE switch selects the output level. Each input features a separate preamplifier circuit, which isolates it from the other inputs. An audio taper single turn gain adjustment is provided for each of the three input preamps. Signals from the three preamps are actively summed and fed to the output amplifier which includes an RDL® dual-LED VU meter.

Each input level is set while observing the LED output level meter. The dual-LED output meter follows standard VU ballistics. The intensity of the green LED progresses from minimum at -11 dBu to full intensity at +4 dBu.

The flexibility of switching each input and the output between MIC or LINE allows installers to address a wide variety of mixing solutions with only one product type.

Specifications

Inputs (3): Mic: 600 Ω; Line: 50 kΩ, balanced
NOTE: MIC INPUTS ON ST-UMX3 ARE NOT PROTECTED AGAINST PHANTOM VOLTAGE. USE THE ST-MPA24 or ST-MPA48 MIC PHANTOM ADAPTER.
Maximum Input Signal: Mic: -18 dBu; Line: +25 dBu
Gain (each input): Mic: Adjustable from OFF to 60 dB
Line: Adjustable from OFF to 21 dB
Output: 150 Ω balanced; 75 Ω unbalanced
Output Signal: Mic: 50 dB below line level
Line: +4 dBu nominal
THD+N: < 0.006%
IMD: Mic (@ 50 dB gain): < 0.04%
Line: < 0.008%
Freq. Response: Mic: 50 Hz to 100 kHz (± 1 dB)
Line: 10 Hz to 100 kHz (± 0.05 dB)
Noise (each input): Mic: < -70 dB (50 dB gain)
Line: < -82 dB (unity gain)
Headroom: 18 dB
CMRR: Mic: > 60 dB
Line: > 50 dB, (50 to 120 Hz)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 55 mA
Package Type: Cardboard Box
WEEE weight: 0.12 lbs.
Shipping Weight: 0.175 lbs.
Tariff code: 8543.70.9860
Package Dimensions: 2 x 2 x 4 in.

RDL 3 Mic/Line Input Universal Audio Mixer

ST-UMX3

$442.64

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ST-UMX3

3×1 Universal Audio Mixer – 3 microphone or line inputs x 1 microphone or line output

Description

Specifications

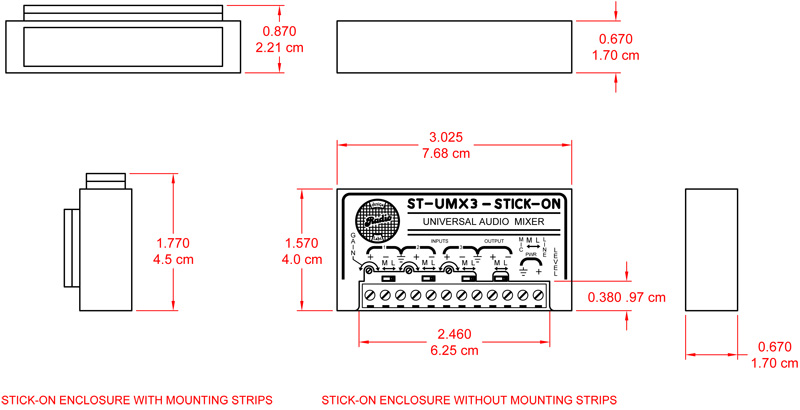

Dimensions
