RDL Remote Channel Selector - 4 Channels - controls RU-ASX4D/R - Black

DB-RCS4

$329.73

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

DB-RCS4

Remote Channel Selector – 4 Channels – Controls RU-SX4A

Remote Control for RDL RU-SX4A Audio Selector
Remote Source Selection Panel
Visual Display of the Selected Source
Multiple Control / Indication Locations
Premium-Quality Remote Panel
Professional Aesthetic Appearance

Description

The DB-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.

The DB-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The DB-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the DB-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.

Specifications

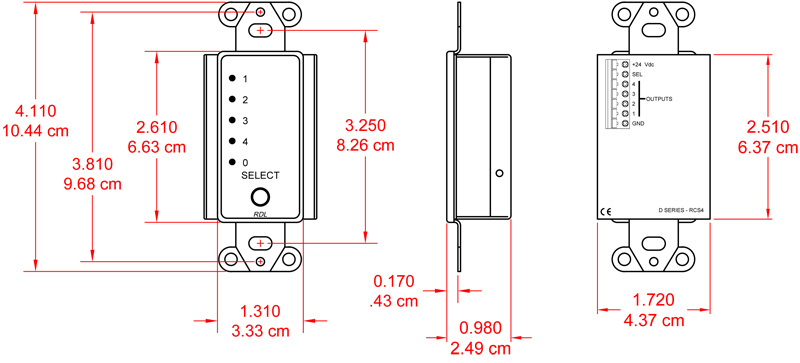

Dimensions: Height: 4.11 in. (10.4 cm), Depth: 1.66 in. (4.21 cm), Width: 1.72 in. (4.37 cm)
LED Inputs: Grounding input activates LED; direct connection from RDL selector module
Indicators (5): Green LEDs for each of 4 selected channels; red LED indicates no channel selected
Outputs: SEL, 15 Vdc @ 5 mA (pushbutton actuated)
Connections: Detachable terminal block
Ambient Operating Environment: 0° C to 55° C
Power Requirement: GROUND-REFERENCED, 24 Vdc @ 25 mA
Mounting: Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U;
decorative plate available separately
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.22 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.
Shipping Weight: 0.37 lbs.
