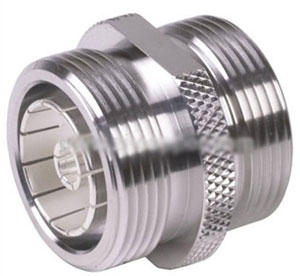

TeleDelta, DIN Female to DIN Female RF Adapter

DIN/DIN-50FF

$37.50

* Ex GST. Check with us for the latest pricing

DIN Female Socket to DIN Female Socket, RF Adapter.

Shell/Body material: Nickel plated Brass
Centre Conductor material: Silver plated phosphor bronze
Insulator material: PTFE
Connector impedance: 50 ohm
Operating frequency band: 0~3000 MHz
Dielectric withstanding voltage: ≥ 4000V (RMS), 50 Hz, at sea level
Insulation resistance: ≥ 10'000 MOhm
VSWR: < 1.08
