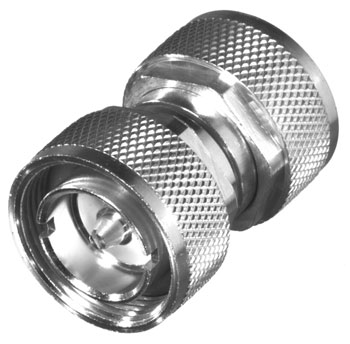

TeleDelta, DIN Male to DIN Male RF Adapter

DIN/DIN-50MM

P.O.A

* Ex GST. Check with us for the latest pricing

DIN Male Plug to DIN Female Socket, RF Adapter.

Shell/Body material: Tri-alloy plated Brass
Centre Conductor material: Silver plated brass
Insulator material: PTFE
Connector impedance: 50 ohm
Operating frequency band: 0~3000 MHz
Dielectric withstanding voltage: ≥ 4000V (RMS), 50 Hz, at sea level
Insulation resistance: ≥ 10'000 MOhm
VSWR: < 1.08
