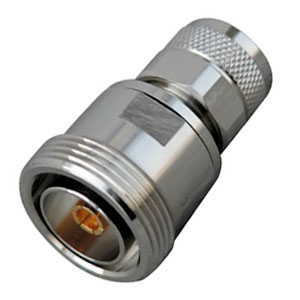

TeleDelta, DIN Female to N Male RF Adapter

DIN/N-50FM

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!


DIN Female Socket to N Male Plug, RF Adapter.

Shell/Body material: Nickel plated Brass
Centre Conductor material: Silver plated phosphor bronze
Insulator material: PTFE
Connector impedance: 50 ohm
Operating frequency band: 0~3000 MHz
Dielectric withstanding voltage: ≥ 2500V (RMS), 50 Hz, at sea level
Insulation resistance: ≥ 5'000 MOhm
VSWR: < 1.08
